Product Introduction
RCG12062R20JNEA
- Part Number
- RCG12062R20JNEA
- Manufacturer/Brand
- Vishay Dale
- Description
- RES SMD 2.2 OHM 5 1/4W 1206
- Category
- Chip Resistor - Surface Mount
- RoHs Status
- Lead free / RoHS Compliant
- Series
- RCG
- Quantity
- 5115pcs Stock Available.

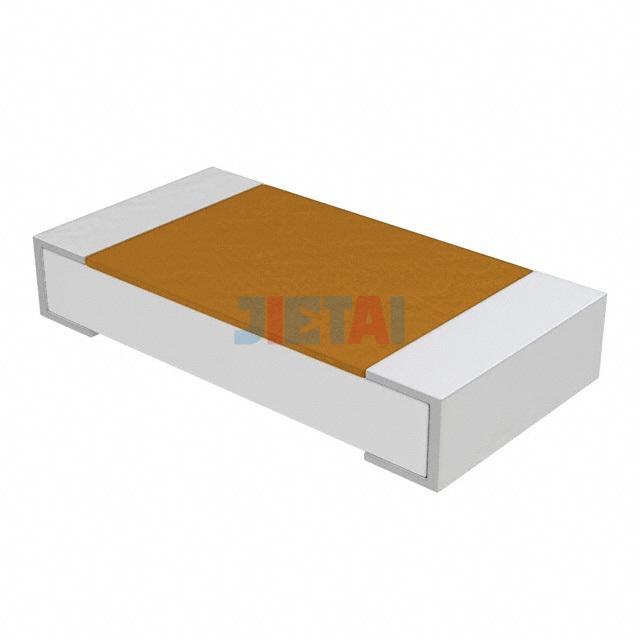

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | RCG12062R20JNEA |
| Datasheet | RCG12062R20JNEA datasheet |
| Description | RES SMD 2.2 OHM 5 1/4W 1206 |
| Manufacturer | Vishay Dale |
| Series | RCG |
| Part Status | Active |
| Resistance | 2.2 Ohms |
| Tolerance | ±5% |
| Power (Watts) | 0.25W, 1/4W |
| Composition | Thick Film |
| Features | - |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
