Product Introduction
ADP3634ARDZ
- Part Number
- ADP3634ARDZ
- Manufacturer/Brand
- Analog Devices Inc.
- Description
- IC DRIVER DUAL 4A NONINV 8SOIC
- Category
- PMIC - Gate Drivers
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 111pcs Stock Available.

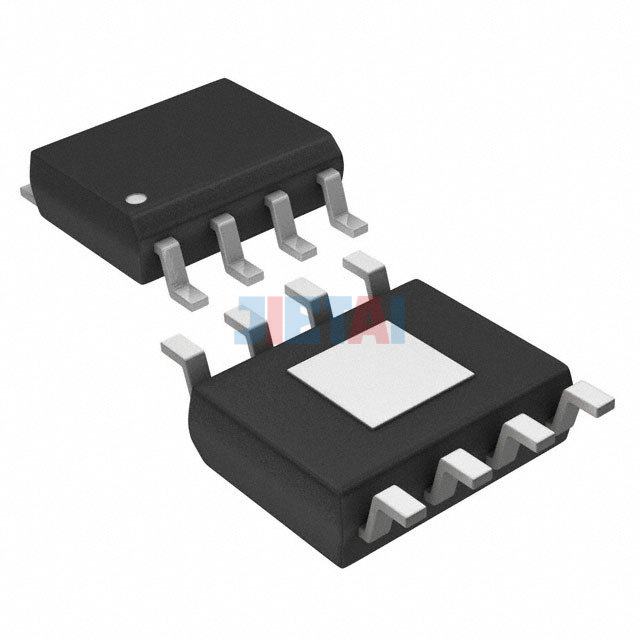

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | ADP3634ARDZ |
| Datasheet | ADP3634ARDZ datasheet |
| Description | IC DRIVER DUAL 4A NONINV 8SOIC |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Part Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 9.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 4A, 4A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 10ns, 10ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-SOIC-EP |
