Home / Products / Capacitors / Aluminum Electrolytic Capacitors / LGN2V331MELA40
Product Introduction
LGN2V331MELA40
- Part Number
- LGN2V331MELA40
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 330UF 20 350V SNAP
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- LGN
- Quantity
- 337pcs Stock Available.

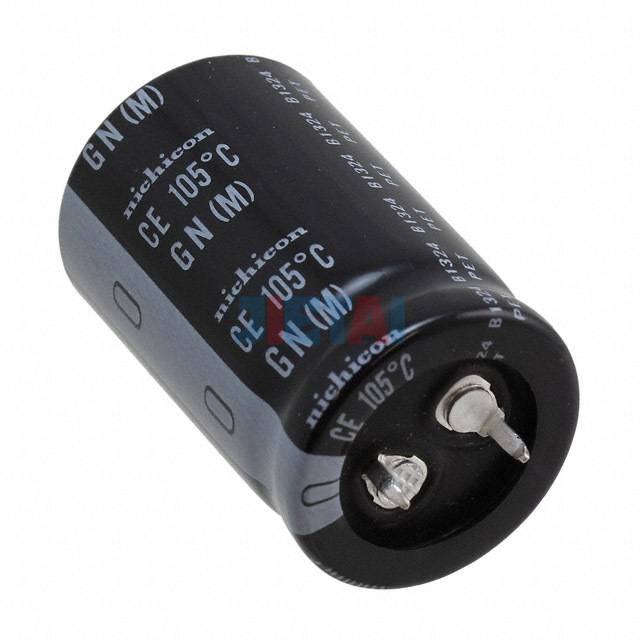

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | LGN2V331MELA40 |
| Datasheet | LGN2V331MELA40 datasheet |
| Description | CAP ALUM 330UF 20 350V SNAP |
| Manufacturer | Nichicon |
| Series | LGN |
| Part Status | Active |
| Capacitance | 330µF |
| Tolerance | ±20% |
| Voltage - Rated | 350V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.2A @ 120Hz |
| Ripple Current @ High Frequency | 1.716A @ 50kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
