Home / Products / Inductors, Coils, Chokes / Fixed Inductors / LQH2HPN150MJRL
Product Introduction
LQH2HPN150MJRL
- Part Number
- LQH2HPN150MJRL
- Manufacturer/Brand
- Murata Electronics North America
- Description
- FIXED IND 15UH 420MA 660 MOHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- LQH2
- Quantity
- 4168pcs Stock Available.

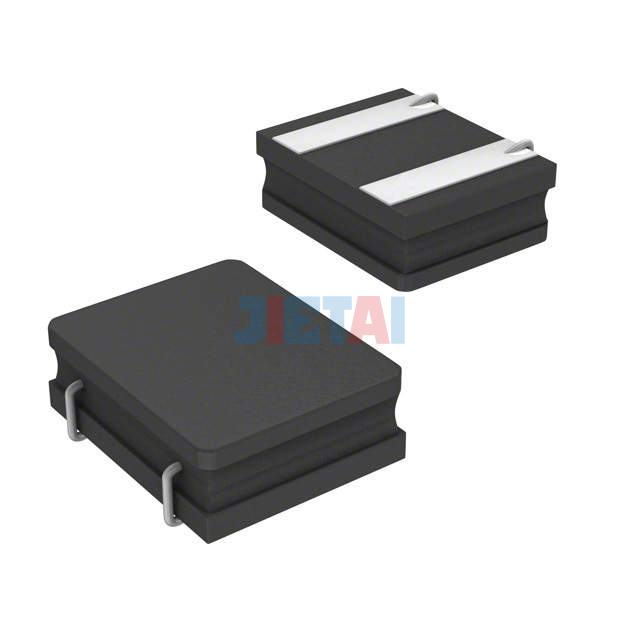

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | LQH2HPN150MJRL |
| Datasheet | LQH2HPN150MJRL datasheet |
| Description | FIXED IND 15UH 420MA 660 MOHM |
| Manufacturer | Murata Electronics North America |
| Series | LQH2 |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 15µH |
| Tolerance | ±20% |
| Current Rating | 420mA |
| Current - Saturation | 690mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 660 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 20MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 1MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
