Product Introduction
EKYB250ELL392MK40S
- Part Number
- EKYB250ELL392MK40S
- Manufacturer/Brand
- United Chemi-Con
- Description
- CAP ALUM 3900UF 20 25V RADIAL
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- KYB
- Quantity
- 371pcs Stock Available.

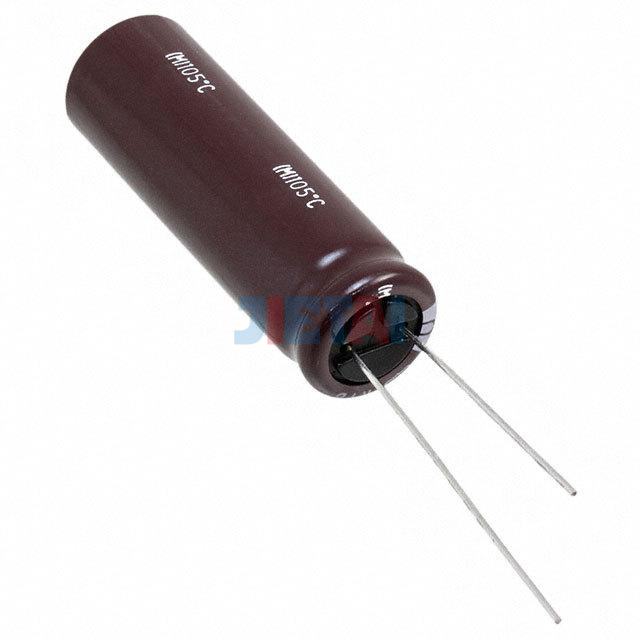

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | EKYB250ELL392MK40S |
| Datasheet | EKYB250ELL392MK40S datasheet |
| Description | CAP ALUM 3900UF 20 25V RADIAL |
| Manufacturer | United Chemi-Con |
| Series | KYB |
| Part Status | Active |
| Capacitance | 3900µF |
| Tolerance | ±20% |
| Voltage - Rated | 25V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.73A @ 120Hz |
| Ripple Current @ High Frequency | 3.64A @ 100kHz |
| Impedance | 17 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.634" (41.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
