Product Introduction
NS12575T100MN
- Part Number
- NS12575T100MN
- Manufacturer/Brand
- Taiyo Yuden
- Description
- FIXED IND 10UH 5.55A 18.72 MOHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- NS
- Quantity
- 6601pcs Stock Available.

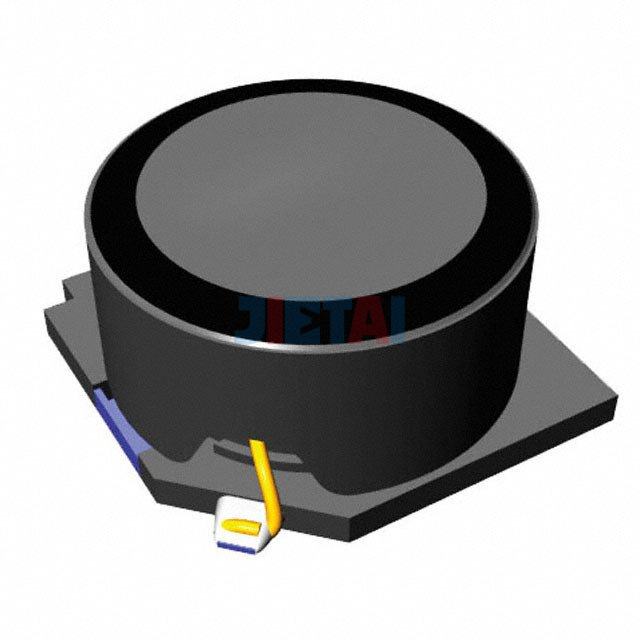

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | NS12575T100MN |
| Datasheet | NS12575T100MN datasheet |
| Description | FIXED IND 10UH 5.55A 18.72 MOHM |
| Manufacturer | Taiyo Yuden |
| Series | NS |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 10µH |
| Tolerance | ±20% |
| Current Rating | 5.55A |
| Current - Saturation | 7.65A |
| Shielding | Shielded |
| DC Resistance (DCR) | 18.72 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 21.5MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max) | 0.309" (7.85mm) |
