Product Introduction
CKP2520N4R7M-T
- Part Number
- CKP2520N4R7M-T
- Manufacturer/Brand
- Taiyo Yuden
- Description
- FIXED IND 4.7UH 1.1A 160 MOHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- CK, P Type
- Quantity
- 6pcs Stock Available.

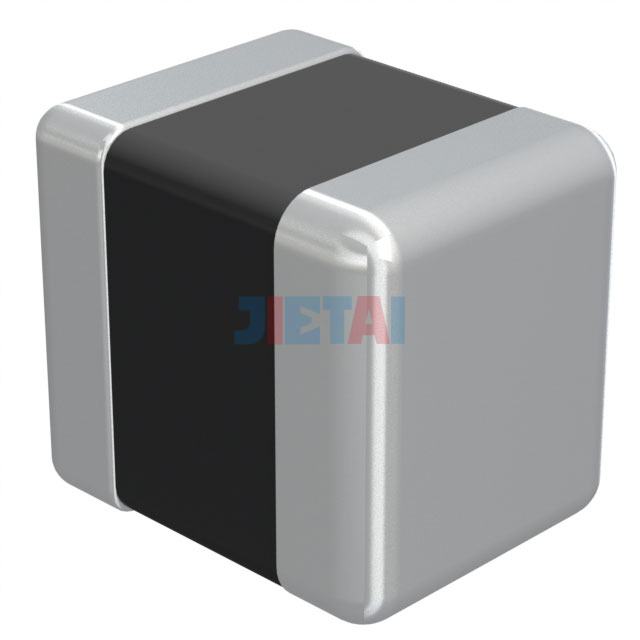

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | CKP2520N4R7M-T |
| Datasheet | CKP2520N4R7M-T datasheet |
| Description | FIXED IND 4.7UH 1.1A 160 MOHM |
| Manufacturer | Taiyo Yuden |
| Series | CK, P Type |
| Part Status | Active |
| Type | Multilayer |
| Material - Core | Ferrite |
| Inductance | 4.7µH |
| Tolerance | ±20% |
| Current Rating | 1.1A |
| Current - Saturation | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 160 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 1MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
