Home / Products / Discrete Semiconductor Products / Diodes - Rectifiers - Single / PMEG2002AESF,315
Product Introduction
PMEG2002AESF,315
- Part Number
- PMEG2002AESF,315
- Manufacturer/Brand
- Nexperia USA Inc.
- Description
- DIODE SCHOTTKY 20V 200MA 2DSN
- Category
- Diodes - Rectifiers - Single
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 8pcs Stock Available.

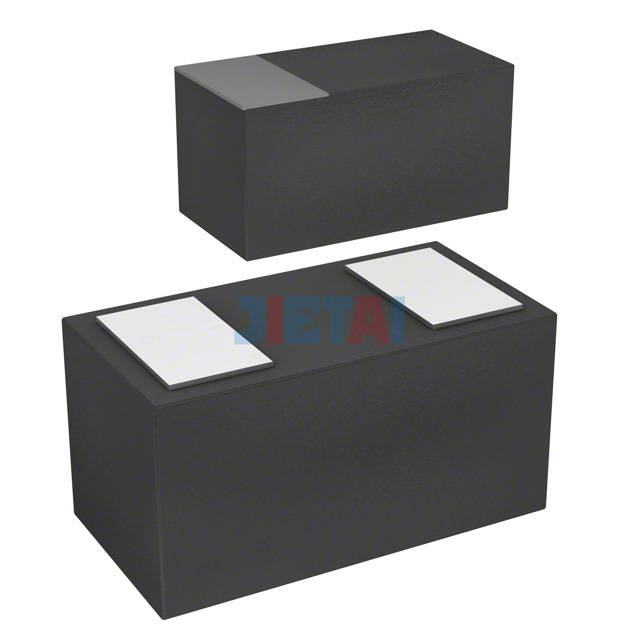

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | PMEG2002AESF,315 |
| Datasheet | PMEG2002AESF,315 datasheet |
| Description | DIODE SCHOTTKY 20V 200MA 2DSN |
| Manufacturer | Nexperia USA Inc. |
| Series | - |
| Part Status | Active |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20V |
| Current - Average Rectified (Io) | 200mA |
| Voltage - Forward (Vf) (Max) @ If | 420mV @ 200mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 1.9ns |
| Current - Reverse Leakage @ Vr | 45µA @ 20V |
| Capacitance @ Vr, F | 25pF @ 1V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | DSN0603-2 |
| Operating Temperature - Junction | 125°C (Max) |
