Product Introduction
M55342H03B249ERWS
- Part Number
- M55342H03B249ERWS
- Manufacturer/Brand
- Vishay Dale
- Description
- RES SMD 249K OHM 1 1/5W 1005
- Category
- Chip Resistor - Surface Mount
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Military, MIL-PRF-55342, RM1005
- Quantity
- 22pcs Stock Available.

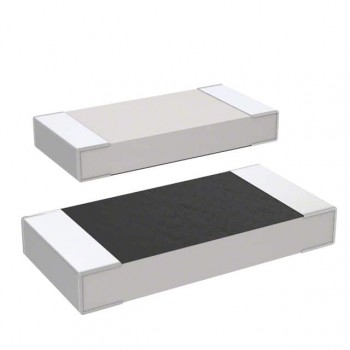

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | M55342H03B249ERWS |
| Datasheet | M55342H03B249ERWS datasheet |
| Description | RES SMD 249K OHM 1 1/5W 1005 |
| Manufacturer | Vishay Dale |
| Series | Military, MIL-PRF-55342, RM1005 |
| Part Status | Active |
| Resistance | 249 kOhms |
| Tolerance | ±1% |
| Power (Watts) | 0.2W, 1/5W |
| Composition | Thin Film |
| Features | Military, Non-Inductive |
| Temperature Coefficient | ±50ppm/°C |
| Operating Temperature | -55°C ~ 150°C |
| Package / Case | Nonstandard |
| Supplier Device Package | 1005 |
| Size / Dimension | 0.105" L x 0.050" W (2.67mm x 1.27mm) |
| Height - Seated (Max) | 0.033" (0.84mm) |
| Number of Terminations | 2 |
| Failure Rate | R (0.01%) |
