Product Introduction
CGS252T300V4C
- Part Number
- CGS252T300V4C
- Manufacturer/Brand
- Cornell Dubilier Electronics (CDE)
- Description
- CAP ALUM 2500UF 300V SCREW
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- CGS
- Quantity
- 17pcs Stock Available.

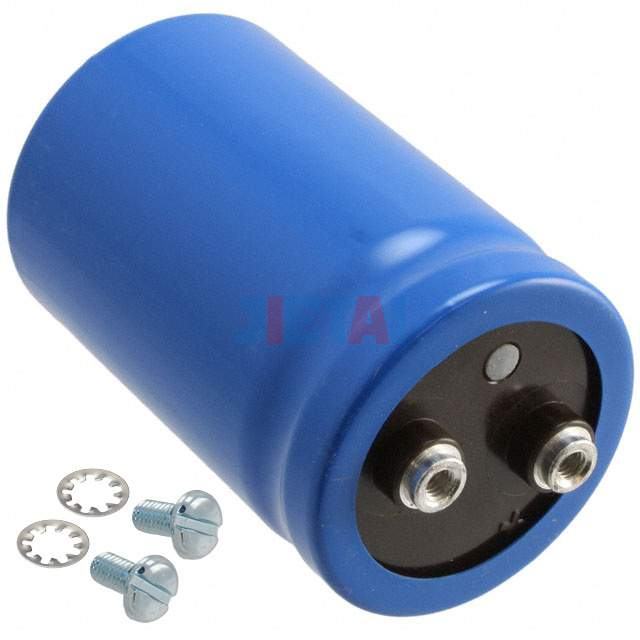

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | CGS252T300V4C |
| Datasheet | CGS252T300V4C datasheet |
| Description | CAP ALUM 2500UF 300V SCREW |
| Manufacturer | Cornell Dubilier Electronics (CDE) |
| Series | CGS |
| Part Status | Active |
| Capacitance | 2500µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 300V |
| ESR (Equivalent Series Resistance) | 44 mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 6.6A @ 120Hz |
| Ripple Current @ High Frequency | 9.9A @ 10kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Height - Seated (Max) | 4.125" (104.78mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
