Home / Products / Capacitors / Aluminum Electrolytic Capacitors / UMT1A470MDD
Product Introduction
UMT1A470MDD
- Part Number
- UMT1A470MDD
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 47UF 20 10V RADIAL
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- UMT
- Quantity
- 18pcs Stock Available.

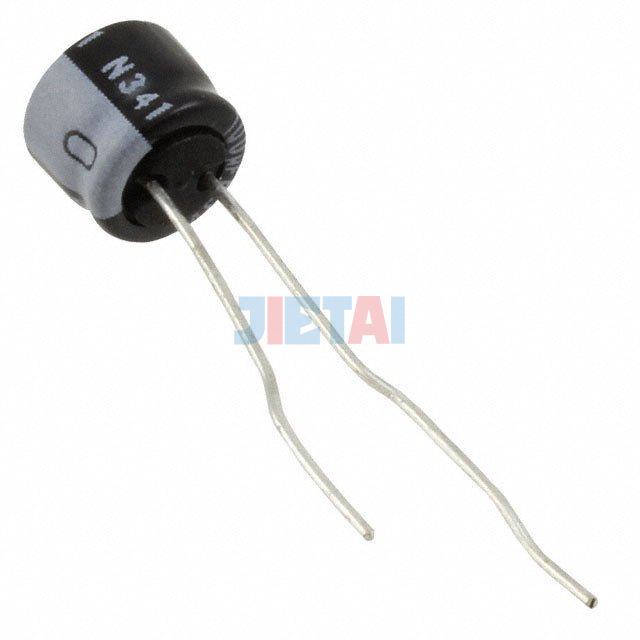

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | UMT1A470MDD |
| Datasheet | UMT1A470MDD datasheet |
| Description | CAP ALUM 47UF 20 10V RADIAL |
| Manufacturer | Nichicon |
| Series | UMT |
| Part Status | Active |
| Capacitance | 47µF |
| Tolerance | ±20% |
| Voltage - Rated | 10V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 36mA @ 120Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
