Home / Products / Crystals, Oscillators, Resonators / Oscillators / 501HCAM032768DAFR
Product Introduction
501HCAM032768DAFR
- Part Number
- 501HCAM032768DAFR
- Manufacturer/Brand
- Silicon Labs
- Description
- OSC CMEMS 32.7680KHZ LVCMOS
- Category
- Oscillators
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Si501
- Quantity
- 7808pcs Stock Available.

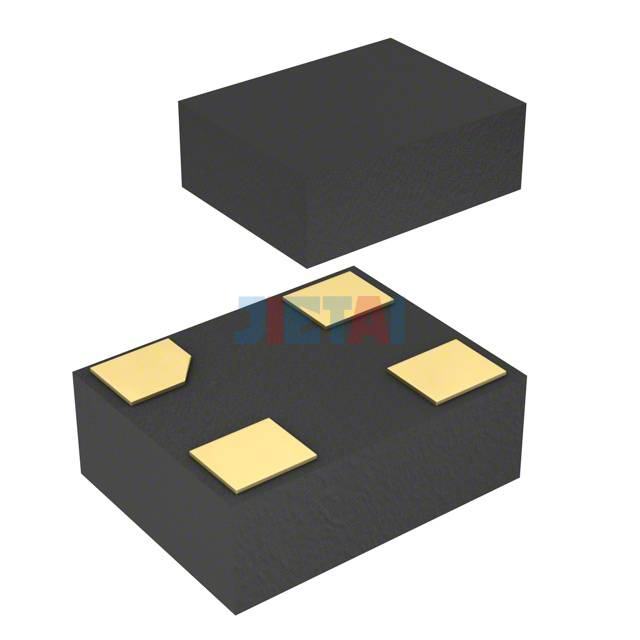

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | 501HCAM032768DAFR |
| Datasheet | 501HCAM032768DAFR datasheet |
| Description | OSC CMEMS 32.7680KHZ LVCMOS |
| Manufacturer | Silicon Labs |
| Series | Si501 |
| Part Status | Obsolete |
| Base Resonator | MEMS |
| Type | CMEMS® |
| Frequency | 32.768kHz |
| Function | Enable/Disable |
| Output | LVCMOS |
| Voltage - Supply | 1.7V ~ 3.6V |
| Frequency Stability | ±20ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -20°C ~ 70°C |
| Current - Supply (Max) | 4.9mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.035" (0.90mm) |
