Home / Products / Capacitors / Aluminum Electrolytic Capacitors / EEV477M025A9PAA
Product Introduction
EEV477M025A9PAA
- Part Number
- EEV477M025A9PAA
- Manufacturer/Brand
- KEMET
- Description
- CAP ALUM 470UF 20 25V SMD
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- EEV
- Quantity
- 23pcs Stock Available.

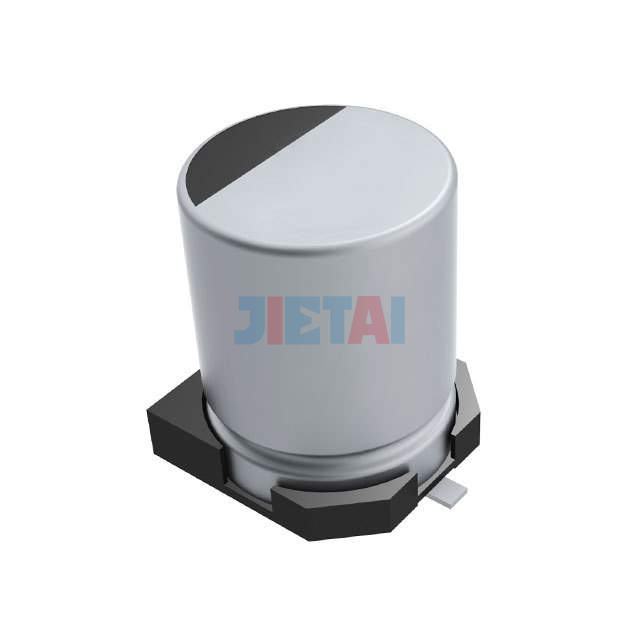

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | EEV477M025A9PAA |
| Datasheet | EEV477M025A9PAA datasheet |
| Description | CAP ALUM 470UF 20 25V SMD |
| Manufacturer | KEMET |
| Series | EEV |
| Part Status | Active |
| Capacitance | 470µF |
| Tolerance | ±20% |
| Voltage - Rated | 25V |
| ESR (Equivalent Series Resistance) | 80 mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 595mA @ 120Hz |
| Ripple Current @ High Frequency | 850mA @ 100kHz |
| Impedance | 80 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
