Product Introduction
DF15C(0.8)-20DS-0.65V(50)
- Part Number
- DF15C(0.8)-20DS-0.65V(50)
- Manufacturer/Brand
- Hirose Electric Co Ltd
- Description
- CONN RECEPT 20POS .8MM DUAL SMD
- RoHs Status
- Lead free / RoHS Compliant
- Series
- DF15
- Quantity
- 8513pcs Stock Available.

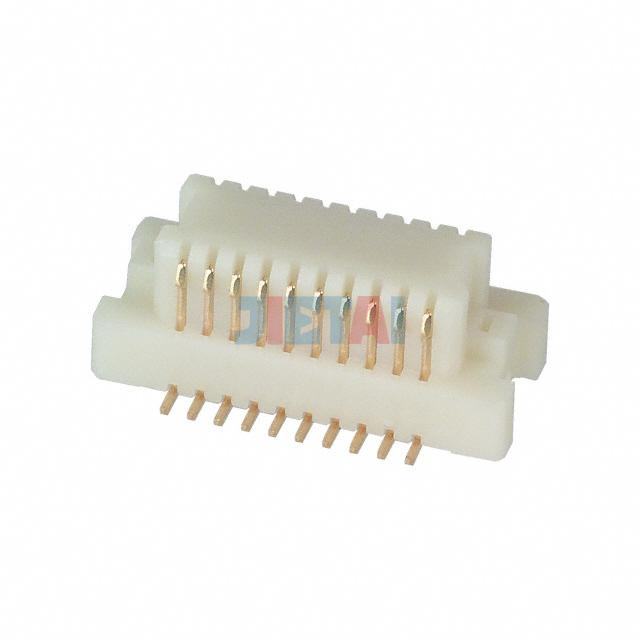

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | DF15C(0.8)-20DS-0.65V(50) |
| Datasheet | DF15C(0.8)-20DS-0.65V(50) datasheet |
| Description | CONN RECEPT 20POS .8MM DUAL SMD |
| Manufacturer | Hirose Electric Co Ltd |
| Series | DF15 |
| Part Status | Obsolete |
| Connector Type | Receptacle, Center Strip Contacts |
| Number of Positions | 20 |
| Pitch | 0.026" (0.65mm) |
| Number of Rows | 2 |
| Mounting Type | Surface Mount |
| Features | - |
| Contact Finish | Gold |
| Contact Finish Thickness | - |
| Mated Stacking Heights | 4mm, 5mm, 7mm |
| Height Above Board | 0.118" (3.00mm) |
