Home / Products / Inductors, Coils, Chokes / Fixed Inductors / SPD73-124M
Product Introduction
SPD73-124M
- Part Number
- SPD73-124M
- Manufacturer/Brand
- API Delevan Inc.
- Description
- FIXED IND 120UH 524MA 840 MOHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- SPD73
- Quantity
- 17pcs Stock Available.

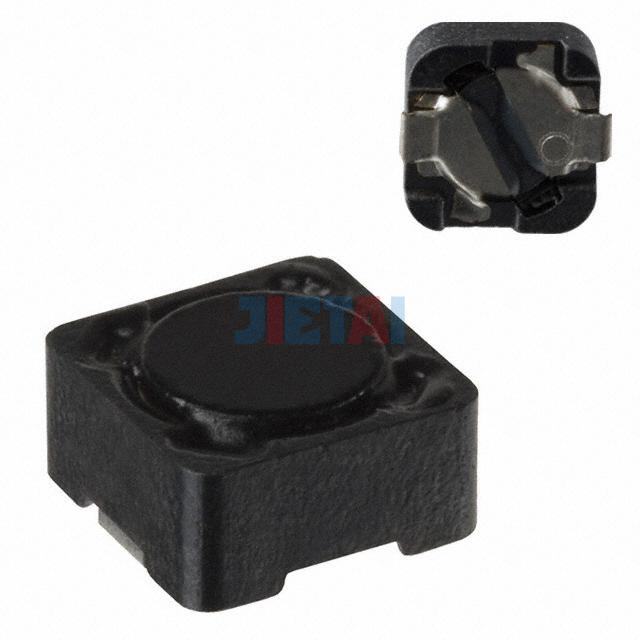

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | SPD73-124M |
| Datasheet | SPD73-124M datasheet |
| Description | FIXED IND 120UH 524MA 840 MOHM |
| Manufacturer | API Delevan Inc. |
| Series | SPD73 |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 120µH |
| Tolerance | ±20% |
| Current Rating | 524mA |
| Current - Saturation | 524mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 840 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Height - Seated (Max) | 0.154" (3.90mm) |
