Home / Products / Capacitors / Aluminum Electrolytic Capacitors / ELXM221VSN331MP35S
Product Introduction
ELXM221VSN331MP35S
- Part Number
- ELXM221VSN331MP35S
- Manufacturer/Brand
- United Chemi-Con
- Description
- CAP ALUM 330UF 20 220V SNAP
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- LXM
- Quantity
- 16pcs Stock Available.

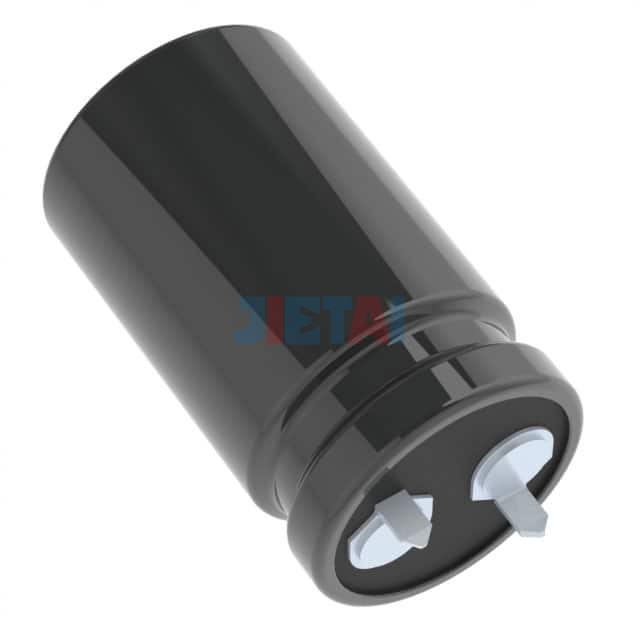

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | ELXM221VSN331MP35S |
| Datasheet | ELXM221VSN331MP35S datasheet |
| Description | CAP ALUM 330UF 20 220V SNAP |
| Manufacturer | United Chemi-Con |
| Series | LXM |
| Part Status | Active |
| Capacitance | 330µF |
| Tolerance | ±20% |
| Voltage - Rated | 220V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.19A @ 120Hz |
| Ripple Current @ High Frequency | 1.785A @ 50kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
