Product Introduction
MC79L15ABDR2G
- Part Number
- MC79L15ABDR2G
- Manufacturer/Brand
- ON Semiconductor
- Description
- IC REG LINEAR -15V 100MA 8SOIC
- Category
- PMIC - Voltage Regulators - Linear
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 2667pcs Stock Available.

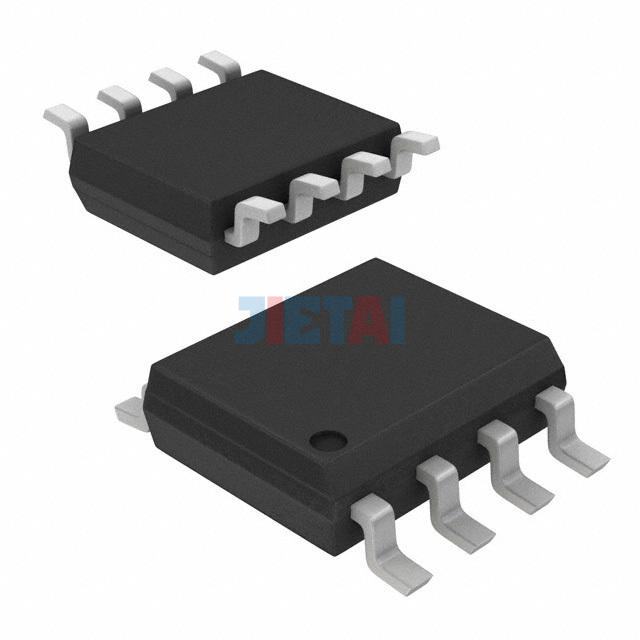

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | MC79L15ABDR2G |
| Datasheet | MC79L15ABDR2G datasheet |
| Description | IC REG LINEAR -15V 100MA 8SOIC |
| Manufacturer | ON Semiconductor |
| Series | - |
| Part Status | Active |
| Output Configuration | Negative |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | -35V |
| Voltage - Output (Min/Fixed) | -15V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.7V @ 40mA (Typ) |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | - |
| Current - Supply (Max) | - |
| PSRR | 39dB (120Hz) |
| Control Features | - |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
