Home / Products / Capacitors / Aluminum Electrolytic Capacitors / 35YXG3300MEFCGC18X35.5
Product Introduction
35YXG3300MEFCGC18X35.5
- Part Number
- 35YXG3300MEFCGC18X35.5
- Manufacturer/Brand
- Rubycon
- Description
- CAP ALUM 3300UF 20 35V RADIAL
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- YXG
- Quantity
- 394pcs Stock Available.

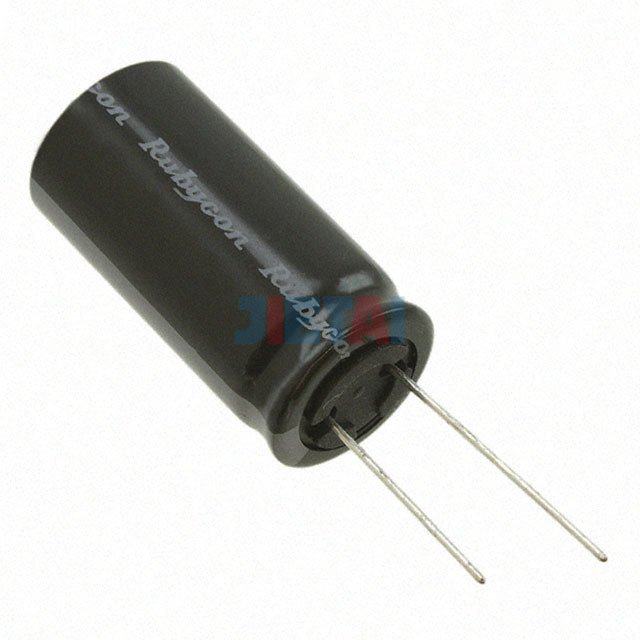

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | 35YXG3300MEFCGC18X35.5 |
| Datasheet | 35YXG3300MEFCGC18X35.5 datasheet |
| Description | CAP ALUM 3300UF 20 35V RADIAL |
| Manufacturer | Rubycon |
| Series | YXG |
| Part Status | Active |
| Capacitance | 3300µF |
| Tolerance | ±20% |
| Voltage - Rated | 35V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.954A @ 120Hz |
| Ripple Current @ High Frequency | 4.22A @ 100kHz |
| Impedance | 14 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
