Product Introduction
PS2811-4-V-F3-A
- Part Number
- PS2811-4-V-F3-A
- Manufacturer/Brand
- Renesas Electronics America
- Description
- OPTOISO 2.5KV 4CH TRANS 16SOIC
- RoHs Status
- Lead free / RoHS Compliant
- Series
- NEPOC
- Quantity
- 16pcs Stock Available.

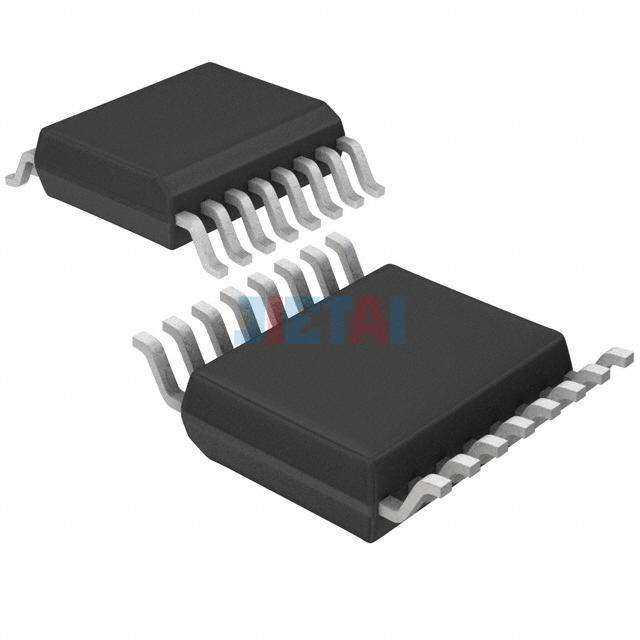

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | PS2811-4-V-F3-A |
| Datasheet | PS2811-4-V-F3-A datasheet |
| Description | OPTOISO 2.5KV 4CH TRANS 16SOIC |
| Manufacturer | Renesas Electronics America |
| Series | NEPOC |
| Part Status | Active |
| Number of Channels | 4 |
| Voltage - Isolation | 2500Vrms |
| Current Transfer Ratio (Min) | 100% @ 1mA |
| Current Transfer Ratio (Max) | 400% @ 1mA |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 4µs, 5µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 40V |
| Current - Output / Channel | 40mA |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Current - DC Forward (If) (Max) | 50mA |
| Vce Saturation (Max) | 300mV |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.173", 4.40mm Width) |
| Supplier Device Package | 16-SSOP |
