Product Introduction
D7M
- Part Number
- D7M
- Manufacturer/Brand
- Switchcraft Inc.
- Description
- CONN RCPT MALE XLR 7POS SOLDER
- Category
- Circular Connectors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Q-G® D
- Quantity
- 42pcs Stock Available.

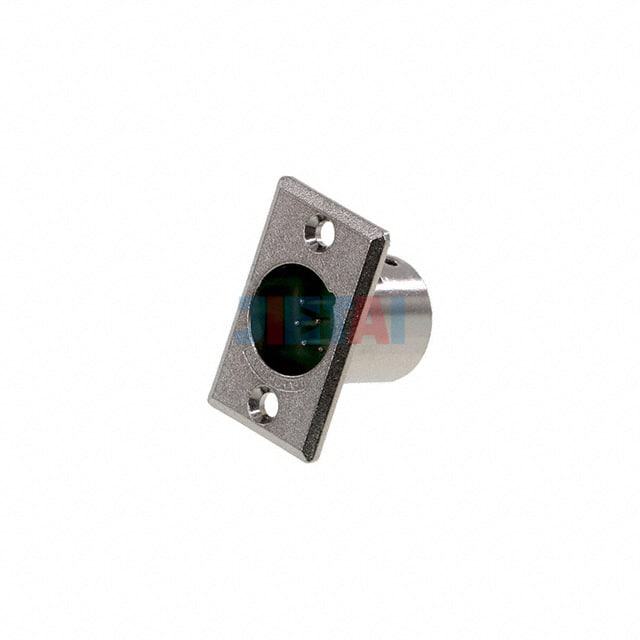

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | D7M |
| Datasheet | D7M datasheet |
| Description | CONN RCPT MALE XLR 7POS SOLDER |
| Manufacturer | Switchcraft Inc. |
| Series | Q-G® D |
| Part Status | Active |
| Connector Type | Receptacle, Male Pins |
| Number of Positions | 7 |
| Shell Size - Insert | XLR |
| Shell Size, MIL | - |
| Mounting Type | Panel Mount |
| Mounting Feature | Flange |
| Termination | Solder Cup |
| Fastening Type | Latch Lock |
| Orientation | Keyed |
| Shell Material | Zinc |
| Shell Finish | Nickel |
| Contact Finish - Mating | Silver |
| Color | Silver |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Features | Ground |
| Shielding | - |
| Current Rating | 5A |
| Voltage Rating | 125VAC |
| Operating Temperature | - |
