Home / Products / Capacitors / Aluminum Electrolytic Capacitors / EKMH401VQT821MB50T
Product Introduction
EKMH401VQT821MB50T
- Part Number
- EKMH401VQT821MB50T
- Manufacturer/Brand
- United Chemi-Con
- Description
- CAP ALUM 820UF 20 400V SNAP
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- KMH
- Quantity
- 16pcs Stock Available.

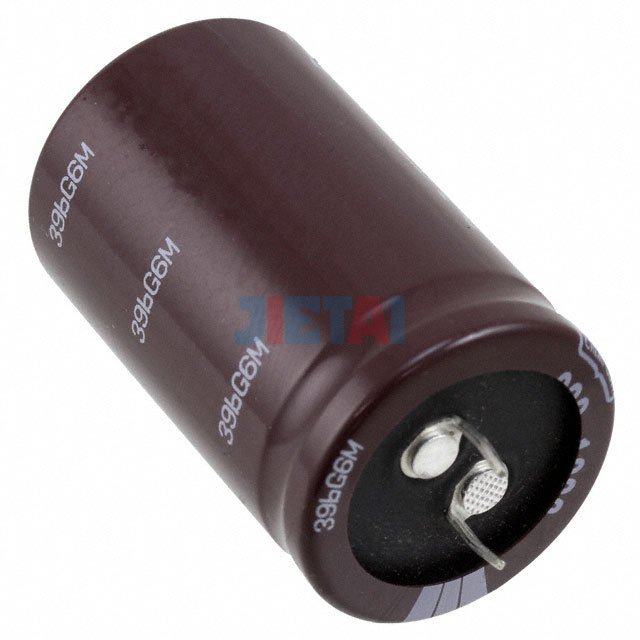

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | EKMH401VQT821MB50T |
| Datasheet | EKMH401VQT821MB50T datasheet |
| Description | CAP ALUM 820UF 20 400V SNAP |
| Manufacturer | United Chemi-Con |
| Series | KMH |
| Part Status | Active |
| Capacitance | 820µF |
| Tolerance | ±20% |
| Voltage - Rated | 400V |
| ESR (Equivalent Series Resistance) | 303 mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.49A @ 120Hz |
| Ripple Current @ High Frequency | 3.5607A @ 100kHz |
| Impedance | - |
| Lead Spacing | 0.984" (25.00mm) |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 5 Lead |
