Product Introduction
HCF1007-2R2-R
- Part Number
- HCF1007-2R2-R
- Manufacturer/Brand
- Eaton - Electronics Division
- Description
- FIXED IND 2.2UH 10.7A 6.35 MOHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- HCF1007
- Quantity
- 16pcs Stock Available.

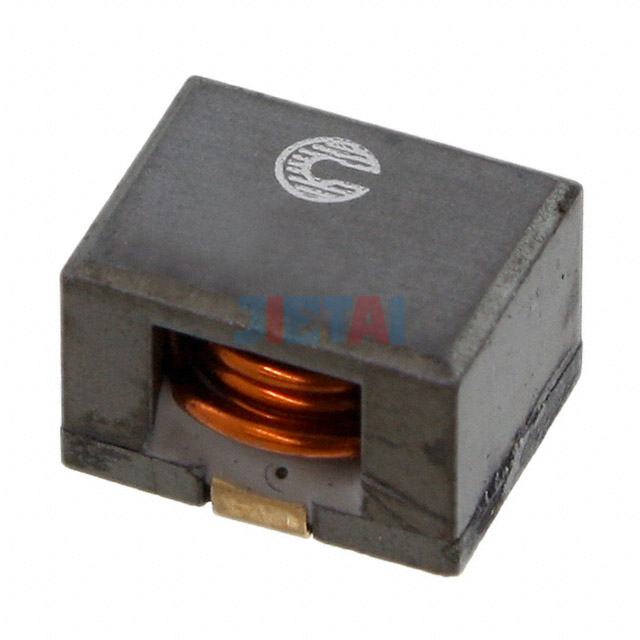

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | HCF1007-2R2-R |
| Datasheet | HCF1007-2R2-R datasheet |
| Description | FIXED IND 2.2UH 10.7A 6.35 MOHM |
| Manufacturer | Eaton - Electronics Division |
| Series | HCF1007 |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.2µH |
| Tolerance | ±20% |
| Current Rating | 10.7A |
| Current - Saturation | 18A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 6.35 mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.398" L x 0.307" W (10.10mm x 7.80mm) |
| Height - Seated (Max) | 0.262" (6.65mm) |
