Product Introduction
PATT0805E1001BGT1
- Part Number
- PATT0805E1001BGT1
- Manufacturer/Brand
- Vishay Thin Film
- Description
- RES SMD 1K OHM 0.1 1/5W 0805
- Category
- Chip Resistor - Surface Mount
- RoHs Status
- Lead free / RoHS Compliant
- Series
- PATT
- Quantity
- 2181pcs Stock Available.

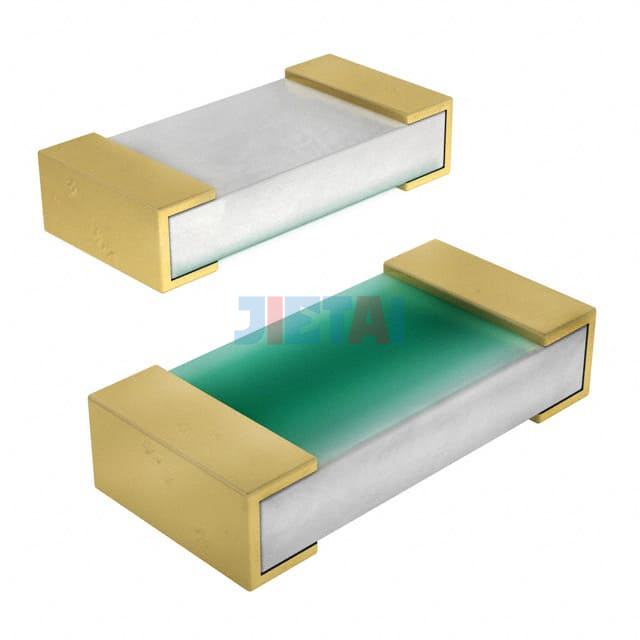

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | PATT0805E1001BGT1 |
| Datasheet | PATT0805E1001BGT1 datasheet |
| Description | RES SMD 1K OHM 0.1 1/5W 0805 |
| Manufacturer | Vishay Thin Film |
| Series | PATT |
| Part Status | Active |
| Resistance | 1 kOhms |
| Tolerance | ±0.1% |
| Power (Watts) | 0.2W, 1/5W |
| Composition | Thin Film |
| Features | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant |
| Temperature Coefficient | ±25ppm/°C |
| Operating Temperature | -55°C ~ 250°C |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Size / Dimension | 0.080" L x 0.050" W (2.03mm x 1.27mm) |
| Height - Seated (Max) | 0.018" (0.46mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
