Home / Products / Capacitors / Aluminum Electrolytic Capacitors / 678D107M063DG3DE3
Product Introduction
678D107M063DG3DE3
- Part Number
- 678D107M063DG3DE3
- Manufacturer/Brand
- Vishay Sprague
- Description
- CAP ALUM 100UF 20 63V RADIAL
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- 678D
- Quantity
- 20pcs Stock Available.

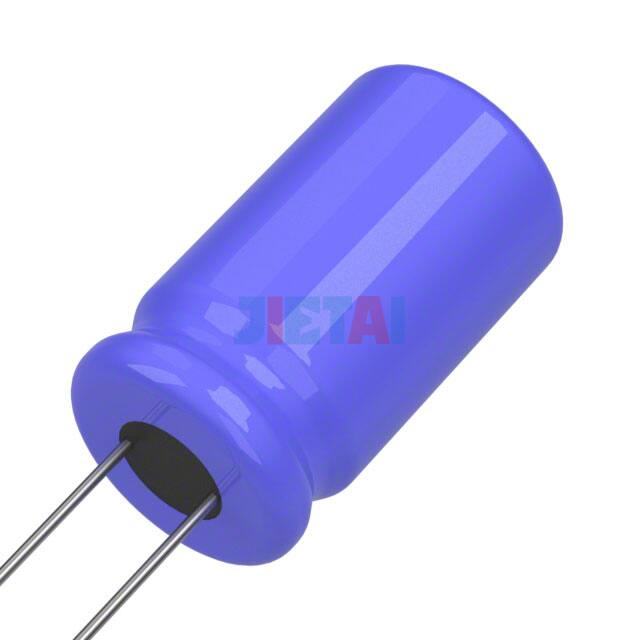

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | 678D107M063DG3DE3 |
| Datasheet | 678D107M063DG3DE3 datasheet |
| Description | CAP ALUM 100UF 20 63V RADIAL |
| Manufacturer | Vishay Sprague |
| Series | 678D |
| Part Status | Active |
| Capacitance | 100µF |
| Tolerance | ±20% |
| Voltage - Rated | 63V |
| ESR (Equivalent Series Resistance) | 450 mOhm @ 20Hz |
| Lifetime @ Temp. | - |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 504mA @ 120Hz |
| Ripple Current @ High Frequency | 720mA @ 100kHz |
| Impedance | 90 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.906" (23.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
