Home / Products / Capacitors / Aluminum Electrolytic Capacitors / 25YXJ330MTA8X11.5
Product Introduction
25YXJ330MTA8X11.5
- Part Number
- 25YXJ330MTA8X11.5
- Manufacturer/Brand
- Rubycon
- Description
- CAP ALUM 330UF 20 25V RADIAL
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- YXJ
- Quantity
- 2131pcs Stock Available.

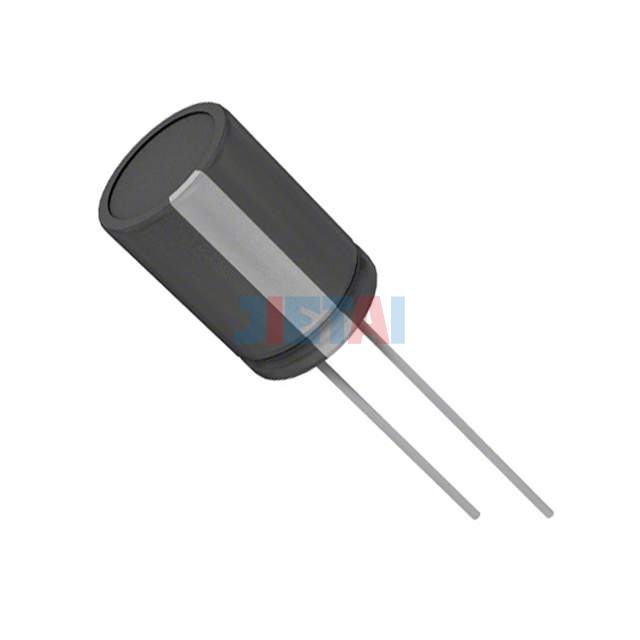

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | 25YXJ330MTA8X11.5 |
| Datasheet | 25YXJ330MTA8X11.5 datasheet |
| Description | CAP ALUM 330UF 20 25V RADIAL |
| Manufacturer | Rubycon |
| Series | YXJ |
| Part Status | Active |
| Capacitance | 330µF |
| Tolerance | ±20% |
| Voltage - Rated | 25V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 448mA @ 120Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 130 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
