Product Introduction
NJM37717E3
- Part Number
- NJM37717E3
- Manufacturer/Brand
- NJR Corporation/NJRC
- Description
- IC MTRDRV BIPLR 4.75-5.25V 24EMP
- Category
- PMIC - Motor Drivers, Controllers
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 6365pcs Stock Available.

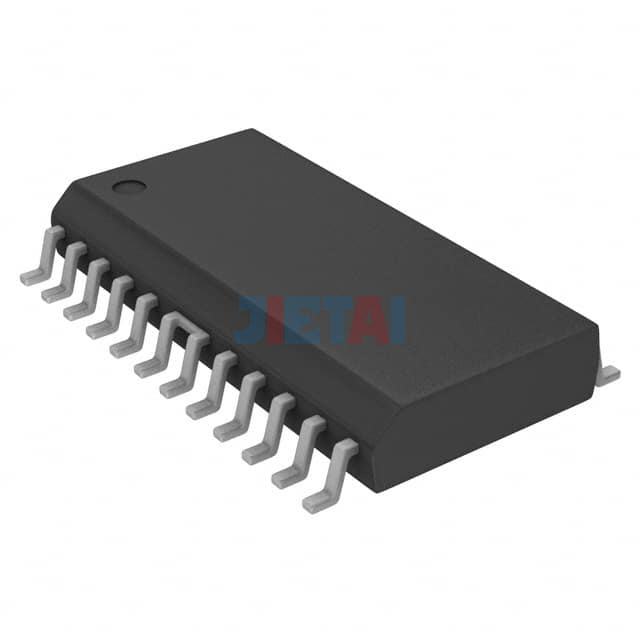

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | NJM37717E3 |
| Datasheet | NJM37717E3 datasheet |
| Description | IC MTRDRV BIPLR 4.75-5.25V 24EMP |
| Manufacturer | NJR Corporation/NJRC |
| Series | - |
| Part Status | Obsolete |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) |
| Interface | Parallel |
| Technology | Bipolar |
| Step Resolution | 1, 1/2 |
| Applications | General Purpose |
| Current - Output | 1A |
| Voltage - Supply | 4.75V ~ 5.25V |
| Voltage - Load | 10V ~ 56V |
| Operating Temperature | -20°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-EMP |
