Product Introduction
E2009QNL
- Part Number
- E2009QNL
- Manufacturer/Brand
- Pulse Electronics Network
- Description
- MODULE 10BASE-T INTRFACE 11.414
- Category
- Pulse Transformers
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 411pcs Stock Available.

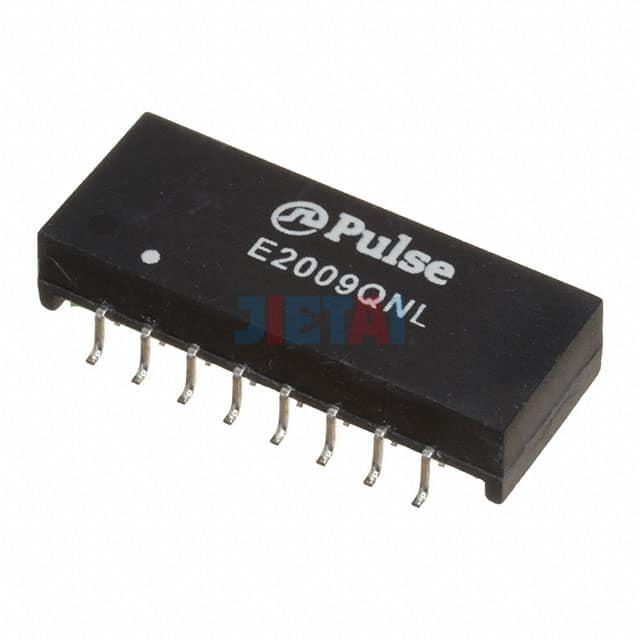

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | E2009QNL |
| Datasheet | E2009QNL datasheet |
| Description | MODULE 10BASE-T INTRFACE 11.414 |
| Manufacturer | Pulse Electronics Network |
| Series | - |
| Part Status | Active |
| Transformer Type | Isolation and Data Interface (Encapsulated) |
| Inductance | - |
| Energy Time (E.T.) | - |
| Turns Ratio - Primary:Secondary | 1:1.414 |
| Mounting Type | Surface Mount |
| Size / Dimension | 1.000" L x 0.385" W (25.40mm x 9.78mm) |
| Height - Seated (Max) | 0.230" (5.84mm) |
| Operating Temperature | 0°C ~ 70°C |
