Product Introduction
MPI4040R2-100-R
- Part Number
- MPI4040R2-100-R
- Manufacturer/Brand
- Eaton - Electronics Division
- Description
- FIXED IND 10UH 1.5A 240 MOHM SMD
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- MPI4040
- Quantity
- 5680pcs Stock Available.

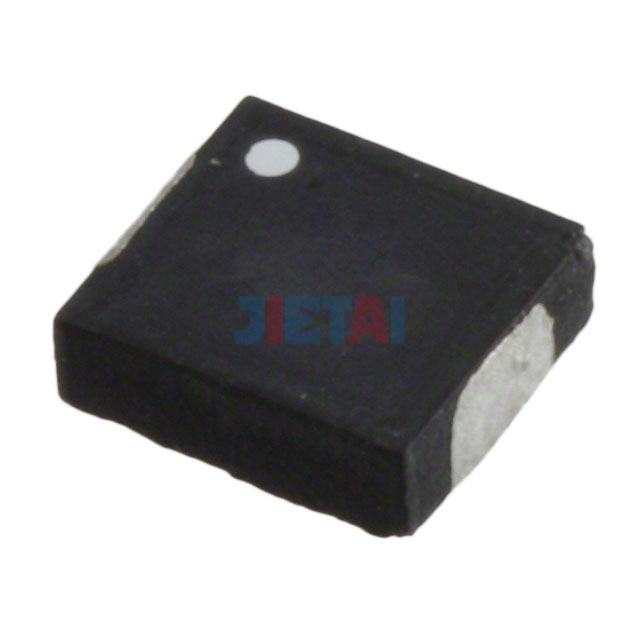

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | MPI4040R2-100-R |
| Datasheet | MPI4040R2-100-R datasheet |
| Description | FIXED IND 10UH 1.5A 240 MOHM SMD |
| Manufacturer | Eaton - Electronics Division |
| Series | MPI4040 |
| Part Status | Obsolete |
| Type | Wirewound |
| Material - Core | Metal Composite |
| Inductance | 10µH |
| Tolerance | ±20% |
| Current Rating | 1.5A |
| Current - Saturation | 3.1A |
| Shielding | Shielded |
| DC Resistance (DCR) | 240 mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1816 (4540 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.175" L x 0.160" W (4.45mm x 4.06mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |
