Product Introduction
RCL06122K20JNEA
- Part Number
- RCL06122K20JNEA
- Manufacturer/Brand
- Vishay Dale
- Description
- RES SMD 2.2K OHM 3/4W 1206 WIDE
- Category
- Chip Resistor - Surface Mount
- RoHs Status
- Lead free / RoHS Compliant
- Series
- RCL
- Quantity
- 3201pcs Stock Available.

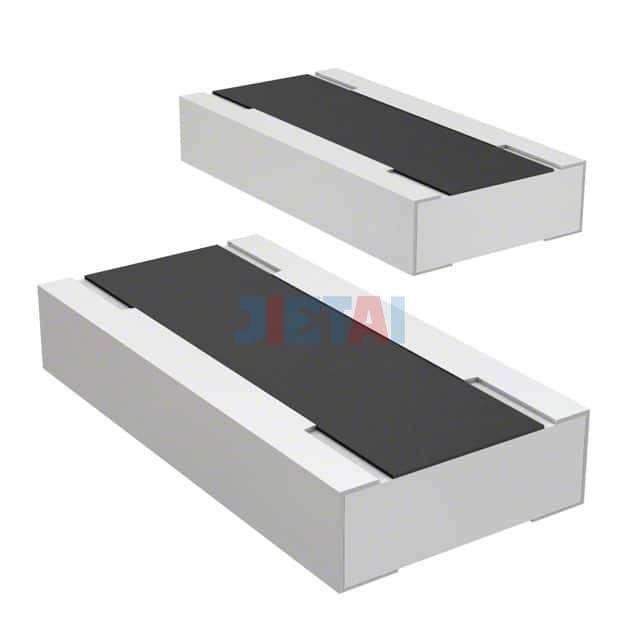

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | RCL06122K20JNEA |
| Datasheet | RCL06122K20JNEA datasheet |
| Description | RES SMD 2.2K OHM 3/4W 1206 WIDE |
| Manufacturer | Vishay Dale |
| Series | RCL |
| Part Status | Active |
| Resistance | 2.2 kOhms |
| Tolerance | ±5% |
| Power (Watts) | 0.75W, 3/4W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200 |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | Wide 1206 (3216 Metric), 0612 |
| Supplier Device Package | 0612 |
| Size / Dimension | 0.063" L x 0.126" W (1.60mm x 3.20mm) |
| Height - Seated (Max) | 0.026" (0.65mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
