Home / Products / Inductors, Coils, Chokes / Fixed Inductors / PG0087.473NLT
Product Introduction

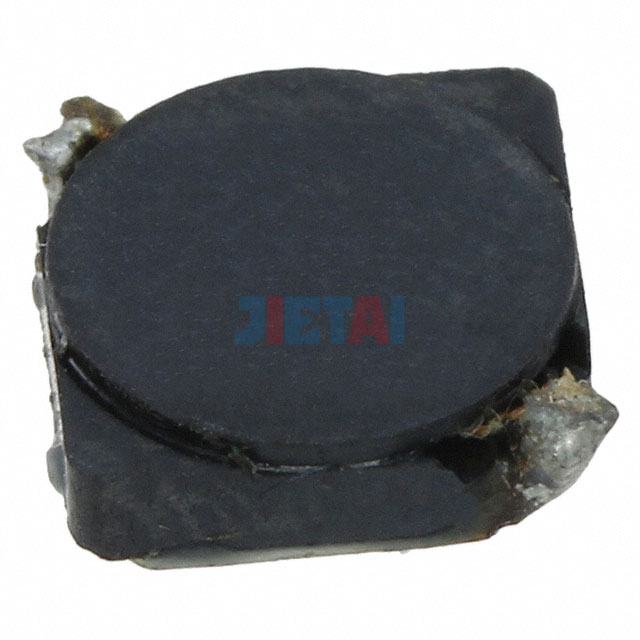

PG0087.473NLT
- Part Number
- PG0087.473NLT
- Manufacturer/Brand
- Pulse Electronics Power
- Description
- FIXED IND 47UH 540MA 594 MOHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- PG0087NL
- Quantity
- 9pcs Stock Available.
Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | PG0087.473NLT |
| Datasheet | PG0087.473NLT datasheet |
| Description | FIXED IND 47UH 540MA 594 MOHM |
| Manufacturer | Pulse Electronics Power |
| Series | PG0087NL |
| Part Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 47µH |
| Tolerance | ±20% |
| Current Rating | 540mA |
| Current - Saturation | 540mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 594 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 15MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.244" L x 0.244" W (6.20mm x 6.20mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
