Home / Products / Capacitors / Aluminum Electrolytic Capacitors / 227CKE035M
Product Introduction
227CKE035M
- Part Number
- 227CKE035M
- Manufacturer/Brand
- Illinois Capacitor
- Description
- CAP ALUM 220UF 20 35V RADIAL
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- CKE
- Quantity
- 24683pcs Stock Available.

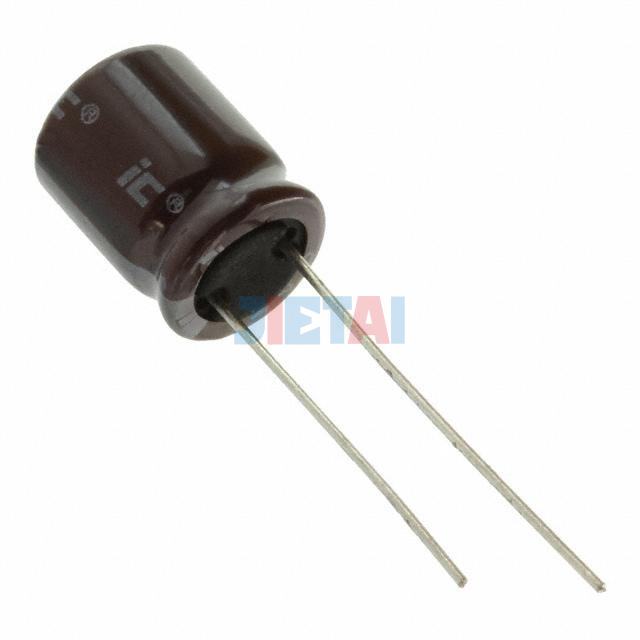

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | 227CKE035M |
| Datasheet | 227CKE035M datasheet |
| Description | CAP ALUM 220UF 20 35V RADIAL |
| Manufacturer | Illinois Capacitor |
| Series | CKE |
| Part Status | Active |
| Capacitance | 220µF |
| Tolerance | ±20% |
| Voltage - Rated | 35V |
| ESR (Equivalent Series Resistance) | 904 mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 295mA @ 120Hz |
| Ripple Current @ High Frequency | 486.75mA @ 100kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
