Product Introduction
LQH43NN561K03L
- Part Number
- LQH43NN561K03L
- Manufacturer/Brand
- Murata Electronics North America
- Description
- FIXED IND 560UH 70MA 14.5 OHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- LQH43
- Quantity
- 658pcs Stock Available.

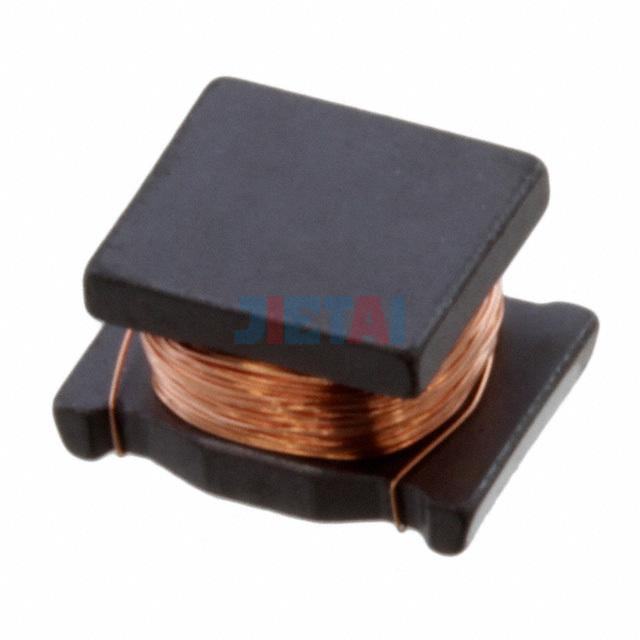

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | LQH43NN561K03L |
| Datasheet | LQH43NN561K03L datasheet |
| Description | FIXED IND 560UH 70MA 14.5 OHM |
| Manufacturer | Murata Electronics North America |
| Series | LQH43 |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 560µH |
| Tolerance | ±10% |
| Current Rating | 70mA |
| Current - Saturation | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 14.5 Ohm Max |
| Q @ Freq | 40 @ 796kHz |
| Frequency - Self Resonant | 2.7MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 1kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric) |
| Supplier Device Package | 1812 (4532 Metric) |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.110" (2.80mm) |
