Product Introduction
EKXJ421ELL6R8MJ16S
- Part Number
- EKXJ421ELL6R8MJ16S
- Manufacturer/Brand
- United Chemi-Con
- Description
- CAP ALUM 6.8UF 20 420V RADIAL
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- KXJ
- Quantity
- 16pcs Stock Available.

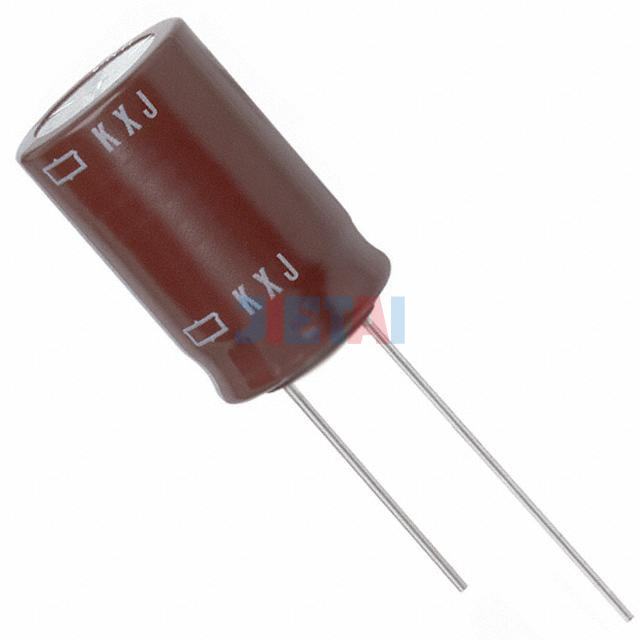

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | EKXJ421ELL6R8MJ16S |
| Datasheet | EKXJ421ELL6R8MJ16S datasheet |
| Description | CAP ALUM 6.8UF 20 420V RADIAL |
| Manufacturer | United Chemi-Con |
| Series | KXJ |
| Part Status | Active |
| Capacitance | 6.8µF |
| Tolerance | ±20% |
| Voltage - Rated | 420V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 105mA @ 120Hz |
| Ripple Current @ High Frequency | 236.25mA @ 100kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
