Product Introduction
UWD0J681MCL1GS
- Part Number
- UWD0J681MCL1GS
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 680UF 20 6.3V SMD
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- UWD
- Quantity
- 698pcs Stock Available.

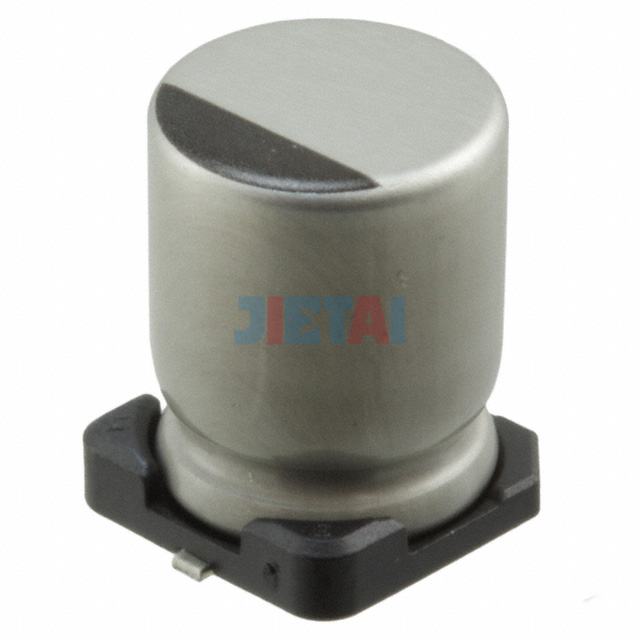

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | UWD0J681MCL1GS |
| Datasheet | UWD0J681MCL1GS datasheet |
| Description | CAP ALUM 680UF 20 6.3V SMD |
| Manufacturer | Nichicon |
| Series | UWD |
| Part Status | Active |
| Capacitance | 680µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 225mA @ 120Hz |
| Ripple Current @ High Frequency | 450mA @ 100kHz |
| Impedance | 170 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
