Product Introduction
UPJ1A103MHD
- Part Number
- UPJ1A103MHD
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 10000UF 20 10V RADIAL
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- UPJ
- Quantity
- 335pcs Stock Available.

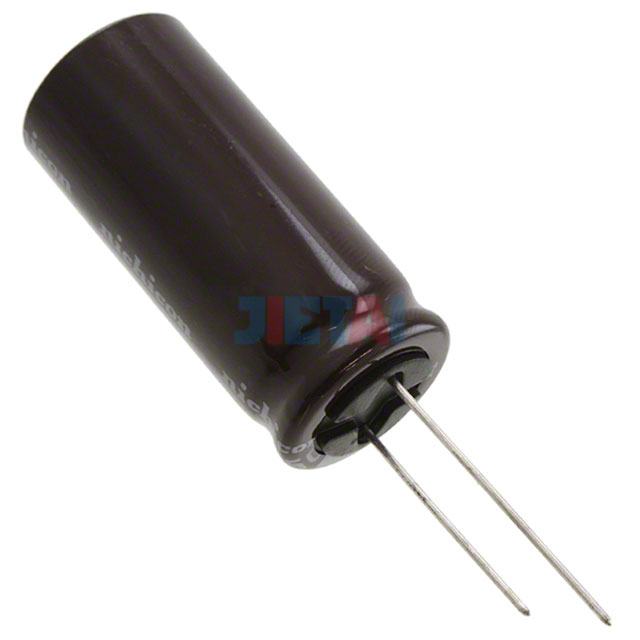

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | UPJ1A103MHD |
| Datasheet | UPJ1A103MHD datasheet |
| Description | CAP ALUM 10000UF 20 10V RADIAL |
| Manufacturer | Nichicon |
| Series | UPJ |
| Part Status | Active |
| Capacitance | 10000µF |
| Tolerance | ±20% |
| Voltage - Rated | 10V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.73A @ 120Hz |
| Ripple Current @ High Frequency | 3.04A @ 10kHz |
| Impedance | 21 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.634" (41.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
