Home / Products / Capacitors / Aluminum Electrolytic Capacitors / HVMLS601M150EA1D
Product Introduction
HVMLS601M150EA1D
- Part Number
- HVMLS601M150EA1D
- Manufacturer/Brand
- Cornell Dubilier Electronics (CDE)
- Description
- CAP ALUM 600UF 20 150V FLATPACK
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- MLS
- Quantity
- 17pcs Stock Available.

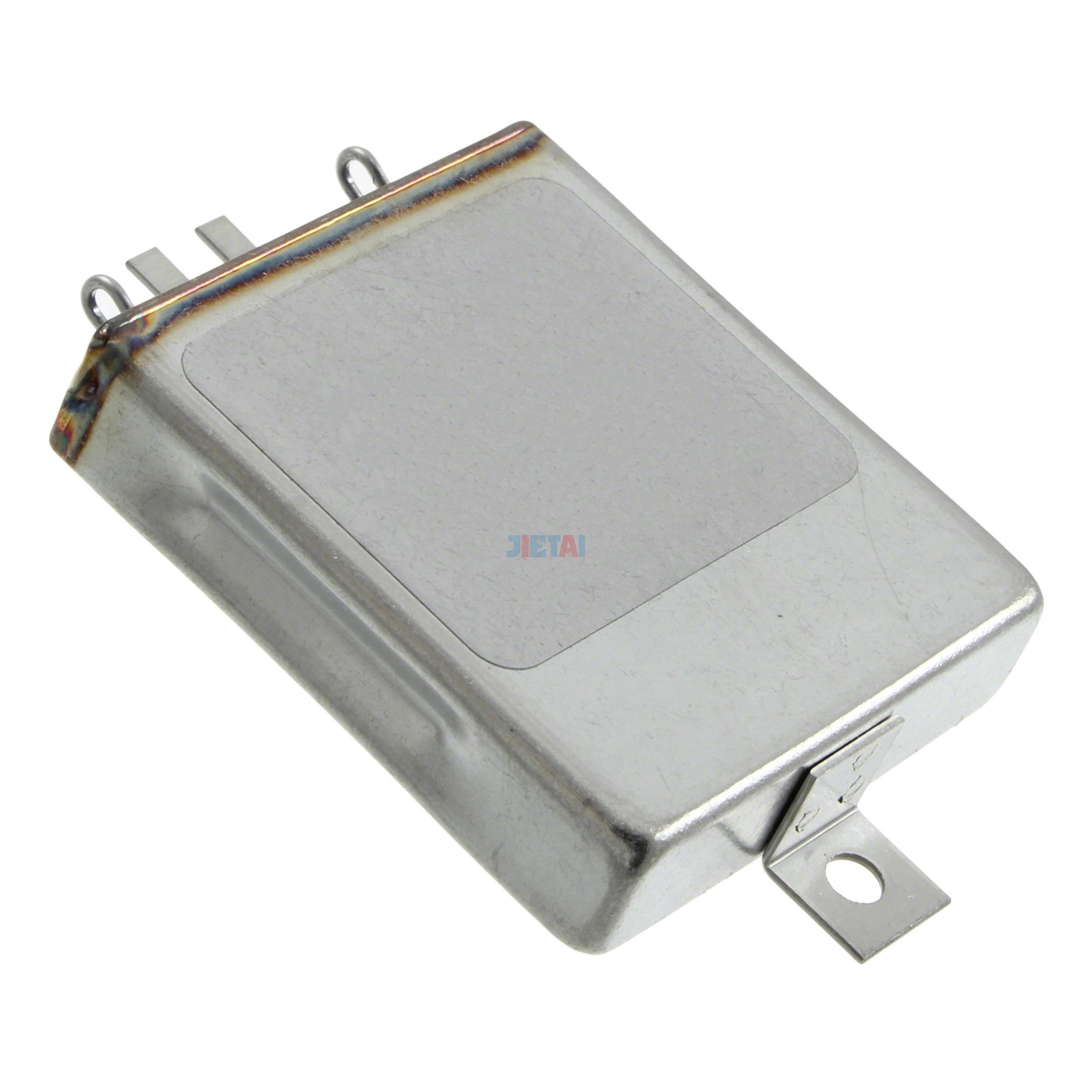

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | HVMLS601M150EA1D |
| Datasheet | HVMLS601M150EA1D datasheet |
| Description | CAP ALUM 600UF 20 150V FLATPACK |
| Manufacturer | Cornell Dubilier Electronics (CDE) |
| Series | MLS |
| Part Status | Active |
| Capacitance | 600µF |
| Tolerance | ±20% |
| Voltage - Rated | 150V |
| ESR (Equivalent Series Resistance) | 261 mOhm @ 120Hz |
| Lifetime @ Temp. | 10000 Hrs @ 85°C |
| Operating Temperature | -55°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 6.3A @ 120Hz |
| Ripple Current @ High Frequency | 7.8A @ 20kHz |
| Impedance | - |
| Lead Spacing | 1.000" (25.40mm) |
| Size / Dimension | 2.000" L x 1.750" W (50.80mm x 44.45mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | FlatPack, Tabbed |
