Product Introduction
Z8F2480SH020EG
- Part Number
- Z8F2480SH020EG
- Manufacturer/Brand
- Zilog
- Description
- IC MCU 8BIT 24KB FLASH 20SOIC
- Category
- Embedded - Microcontrollers
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Encore!® XP®
- Quantity
- 149pcs Stock Available.

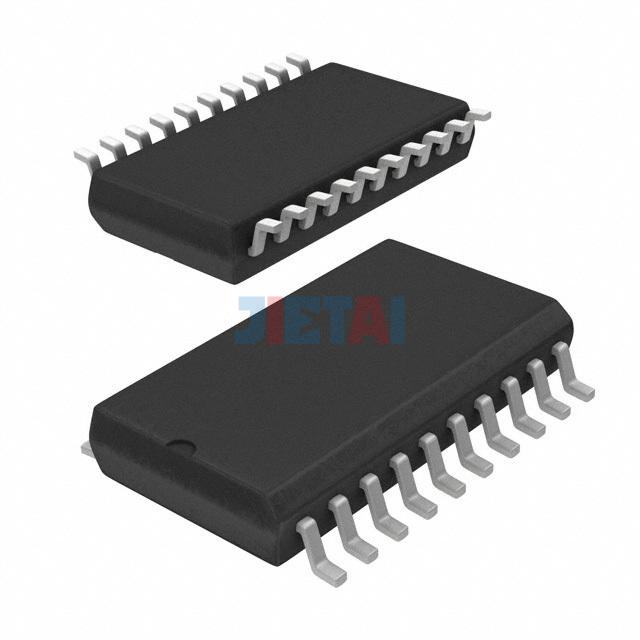

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | Z8F2480SH020EG |
| Datasheet | Z8F2480SH020EG datasheet |
| Description | IC MCU 8BIT 24KB FLASH 20SOIC |
| Manufacturer | Zilog |
| Series | Encore!® XP® |
| Part Status | Active |
| Core Processor | eZ8 |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | I²C, IrDA, LINbus, UART/USART |
| Peripherals | Brown-out Detect/Reset, LED, LVD, POR, PWM, Temp Sensor, WDT |
| Number of I/O | 17 |
| Program Memory Size | 24KB (24K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 3K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 7x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Package / Case | Surface Mount |
| Supplier Device Package | 20-SOIC (0.295", 7.50mm Width) |
| Base Part Number | - |
