Product Introduction
NMH1209SC
- Part Number
- NMH1209SC
- Manufacturer/Brand
- Murata Power Solutions Inc.
- Description
- DC DC CONVERTER /-9V 2W
- Category
- DC DC Converters
- RoHs Status
- Lead free / RoHS Compliant
- Series
- NMH (2W)
- Quantity
- 310pcs Stock Available.

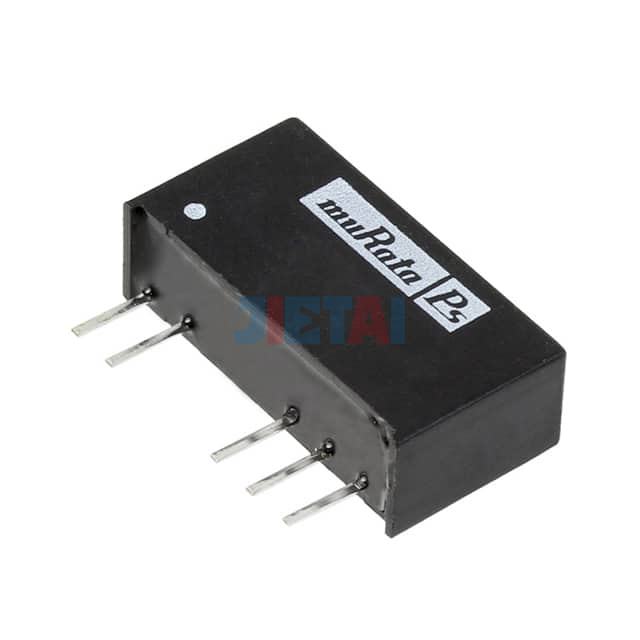

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | NMH1209SC |
| Datasheet | NMH1209SC datasheet |
| Description | DC DC CONVERTER /-9V 2W |
| Manufacturer | Murata Power Solutions Inc. |
| Series | NMH (2W) |
| Part Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 10.8V |
| Voltage - Input (Max) | 13.2V |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | -9V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 111mA, 111mA |
| Power (Watts) | 2W |
| Voltage - Isolation | 1kV |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 83% |
| Mounting Type | Through Hole |
| Package / Case | 7-SIP Module, 5 Leads |
| Size / Dimension | 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
