Product Introduction
R5F2136AEJFP#W4
- Part Number
- R5F2136AEJFP#W4
- Manufacturer/Brand
- Renesas Electronics America
- Description
- IC MCU 16BIT 96KB FLASH 64LFQFP
- Category
- Embedded - Microcontrollers
- RoHs Status
- Lead free / RoHS Compliant
- Series
- R8C/3x/36E
- Quantity
- 1667pcs Stock Available.

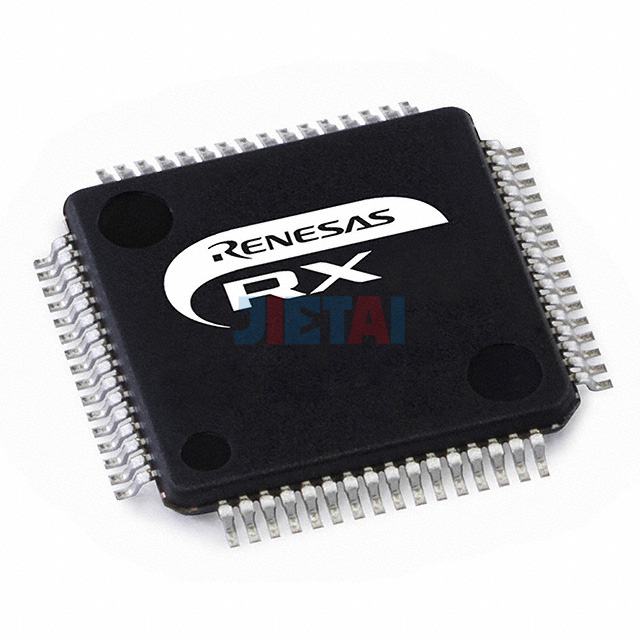

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | R5F2136AEJFP#W4 |
| Datasheet | R5F2136AEJFP#W4 datasheet |
| Description | IC MCU 16BIT 96KB FLASH 64LFQFP |
| Manufacturer | Renesas Electronics America |
| Series | R8C/3x/36E |
| Part Status | Active |
| Core Processor | R8C |
| Core Size | 16-Bit |
| Speed | 20MHz |
| Connectivity | CANbus, I²C, LINbus, SIO, SSU, UART/USART |
| Peripherals | POR, PWM, Voltage Detect, WDT |
| Number of I/O | 59 |
| Program Memory Size | 96KB (96K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 16x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | Surface Mount |
| Supplier Device Package | 64-LQFP |
| Base Part Number | 64-LFQFP (10x10) |
