Product Introduction
PESD12VS1UL,315
- Part Number
- PESD12VS1UL,315
- Manufacturer/Brand
- Nexperia USA Inc.
- Description
- TVS DIODE 12V 35V SOD882
- Category
- TVS - Diodes
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Automotive, AEC-Q101
- Quantity
- 40174pcs Stock Available.

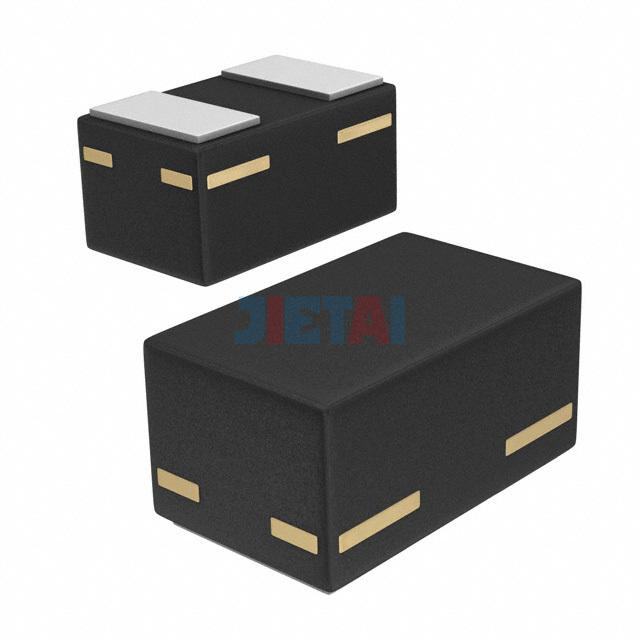

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | PESD12VS1UL,315 |
| Datasheet | PESD12VS1UL,315 datasheet |
| Description | TVS DIODE 12V 35V SOD882 |
| Manufacturer | Nexperia USA Inc. |
| Series | Automotive, AEC-Q101 |
| Part Status | Active |
| Type | Zener |
| Unidirectional Channels | 1 |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 12V (Max) |
| Voltage - Breakdown (Min) | 14.7V |
| Voltage - Clamping (Max) @ Ipp | 35V |
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) |
| Power - Peak Pulse | 150W |
| Power Line Protection | No |
| Applications | Automotive |
| Capacitance @ Frequency | 38pF @ 1MHz |
| Operating Temperature | -65°C ~ 150°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOD-882 |
| Supplier Device Package | SOD-882 |
