Home / Products / Power Supplies - Board Mount / DC DC Converters / ISX0624D15
Product Introduction
ISX0624D15
- Part Number
- ISX0624D15
- Manufacturer/Brand
- XP Power
- Description
- DC DC CONVERTER /-15V 6W
- Category
- DC DC Converters
- RoHs Status
- Lead free / RoHS Compliant
- Series
- ISX06 (6W)
- Quantity
- 234pcs Stock Available.

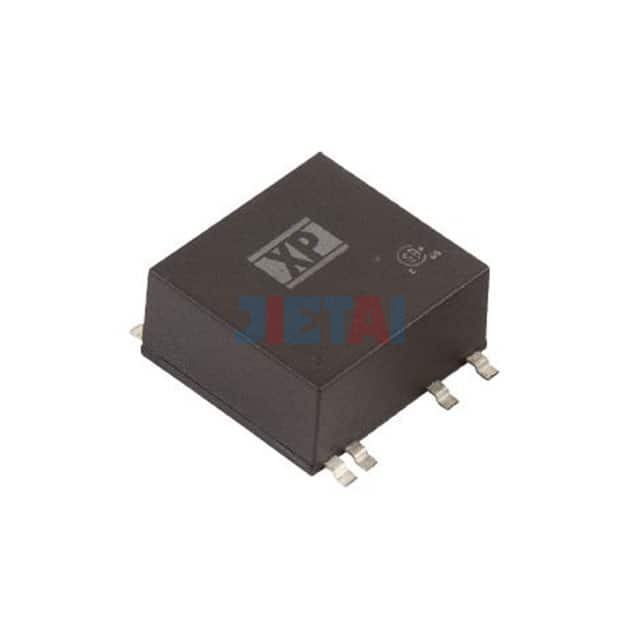

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | ISX0624D15 |
| Datasheet | ISX0624D15 datasheet |
| Description | DC DC CONVERTER /-15V 6W |
| Manufacturer | XP Power |
| Series | ISX06 (6W) |
| Part Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 200mA, 200mA |
| Power (Watts) | 6W |
| Voltage - Isolation | 1.5kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, SCP, UVLO |
| Operating Temperature | -40°C ~ 100°C |
| Efficiency | 83% |
| Mounting Type | Surface Mount |
| Package / Case | 16-SMD Module, 7 Leads |
| Size / Dimension | 0.87" L x 0.80" W x 0.40" H (22.0mm x 20.3mm x 10.1mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
