Product Introduction
ABPLLNN600MGAA3
- Part Number
- ABPLLNN600MGAA3
- Manufacturer/Brand
- Honeywell Sensing and Productivity Solutions
- Description
- SENSOR PRESSURE 600 MBARG
- Category
- Pressure Sensors, Transducers
- RoHs Status
- Lead free / RoHS Compliant
- Series
- ABP
- Quantity
- 194pcs Stock Available.

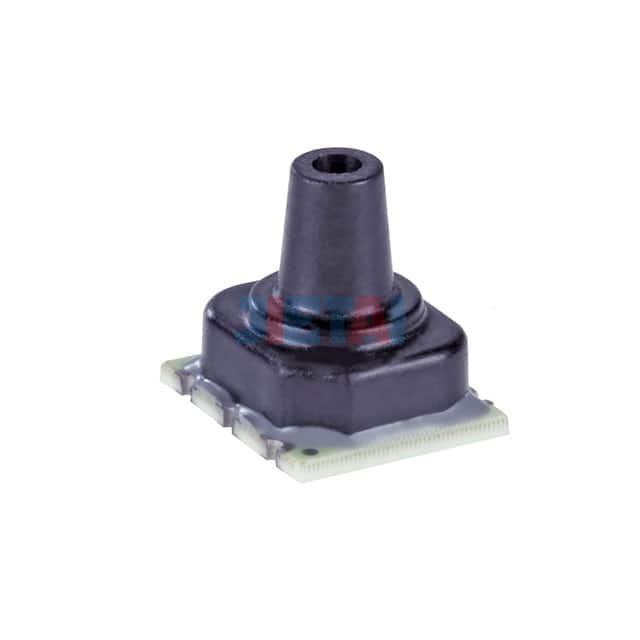

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | ABPLLNN600MGAA3 |
| Datasheet | ABPLLNN600MGAA3 datasheet |
| Description | SENSOR PRESSURE 600 MBARG |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | ABP |
| Part Status | Active |
| Applications | Board Mount |
| Pressure Type | Vented Gauge |
| Operating Pressure | 8.7PSI (60kPa) |
| Output Type | Analog Voltage |
| Output | 0.33 V ~ 2.97 V |
| Accuracy | ±0.25% |
| Voltage - Supply | 3.3V |
| Port Size | Male - 0.11" (2.67mm) Tube |
| Port Style | Barbless |
| Features | Amplified Output, Temperature Compensated |
| Termination Style | SMD (SMT) Tab |
| Maximum Pressure | 29.01PSI (200kPa) |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 6-SMD Module, No Lead |
| Supplier Device Package | Module |
