Product Introduction

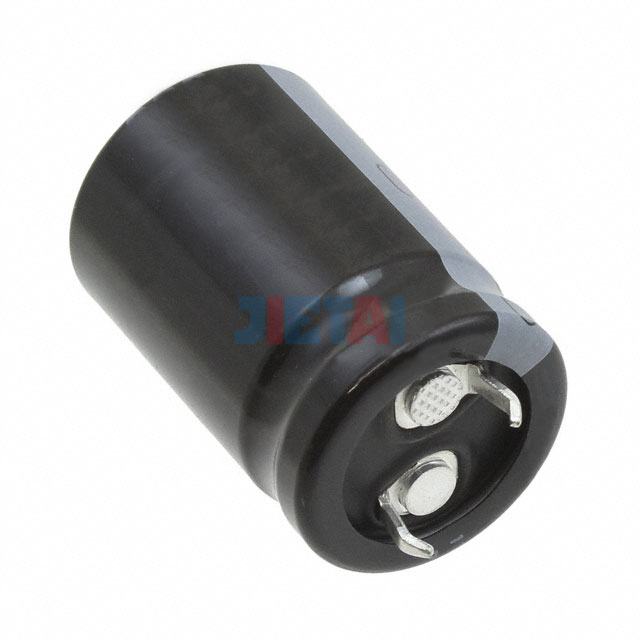

LGU2E181MELY
- Part Number
- LGU2E181MELY
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 180UF 20 250V SNAP
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- LGU
- Quantity
- 19pcs Stock Available.
Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | LGU2E181MELY |
| Datasheet | LGU2E181MELY datasheet |
| Description | CAP ALUM 180UF 20 250V SNAP |
| Manufacturer | Nichicon |
| Series | LGU |
| Part Status | Active |
| Capacitance | 180µF |
| Tolerance | ±20% |
| Voltage - Rated | 250V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 900mA @ 120Hz |
| Ripple Current @ High Frequency | 1.35A @ 50kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
