Product Introduction
KY6.3VB681M8X11LL
- Part Number
- KY6.3VB681M8X11LL
- Manufacturer/Brand
- United Chemi-Con
- Description
- CAP ALUM 680UF 20 6.3V RADIAL
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- KY
- Quantity
- 644pcs Stock Available.

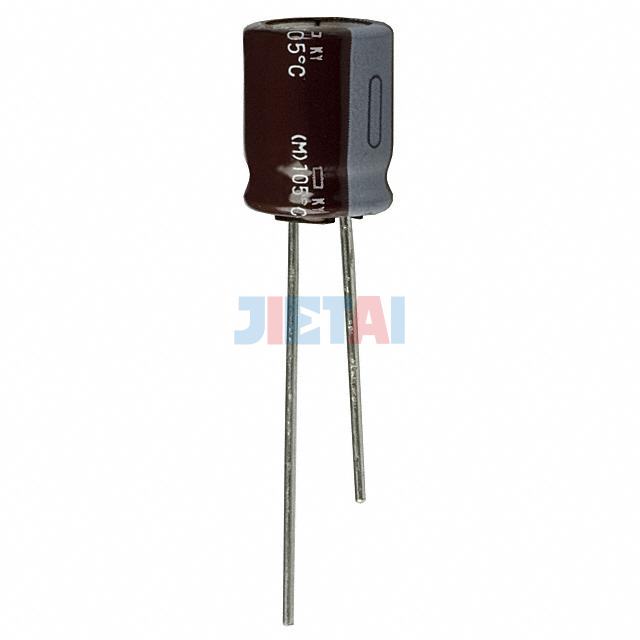

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | KY6.3VB681M8X11LL |
| Description | CAP ALUM 680UF 20 6.3V RADIAL |
| Manufacturer | United Chemi-Con |
| Series | KY |
| Part Status | Obsolete |
| Capacitance | 680µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 384mA @ 120Hz |
| Ripple Current @ High Frequency | 640mA @ 100kHz |
| Impedance | 130 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
