Home / Products / Capacitors / Aluminum Electrolytic Capacitors / KZE35VB221M8X15LL
Product Introduction
KZE35VB221M8X15LL
- Part Number
- KZE35VB221M8X15LL
- Manufacturer/Brand
- United Chemi-Con
- Description
- CAP ALUM 220UF 20 35V RADIAL
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- KZE
- Quantity
- 1152pcs Stock Available.

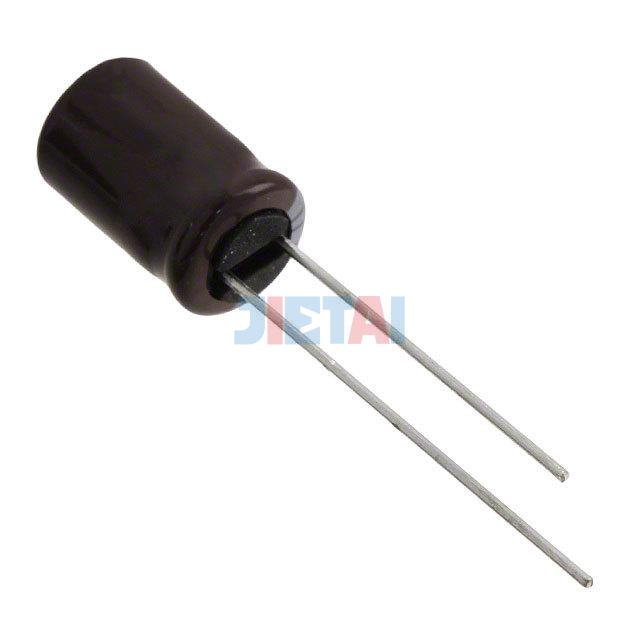

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | KZE35VB221M8X15LL |
| Description | CAP ALUM 220UF 20 35V RADIAL |
| Manufacturer | United Chemi-Con |
| Series | KZE |
| Part Status | Obsolete |
| Capacitance | 220µF |
| Tolerance | ±20% |
| Voltage - Rated | 35V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 497.5mA @ 120Hz |
| Ripple Current @ High Frequency | 995mA @ 100kHz |
| Impedance | 56 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
