Home / Products / Capacitors / Aluminum Electrolytic Capacitors / EMVH500ADA220MH63G
Product Introduction
EMVH500ADA220MH63G
- Part Number
- EMVH500ADA220MH63G
- Manufacturer/Brand
- United Chemi-Con
- Description
- CAP ALUM 22UF 20 50V SMD
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Alchip™- MVH
- Quantity
- 1168pcs Stock Available.

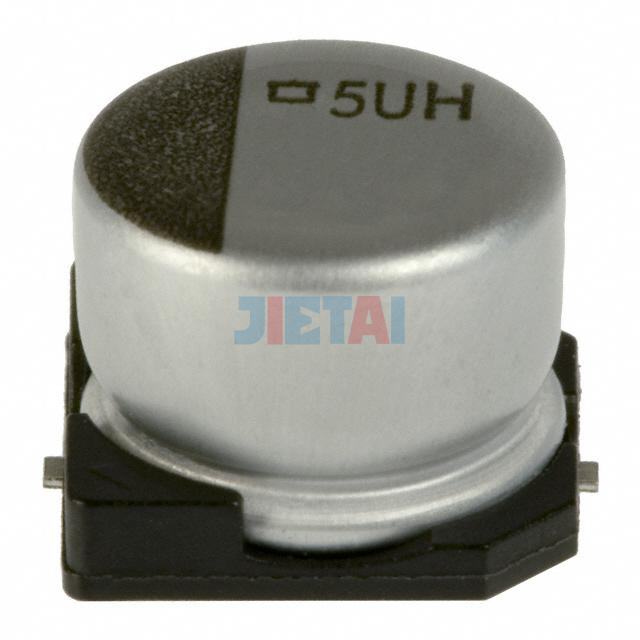

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | EMVH500ADA220MH63G |
| Datasheet | EMVH500ADA220MH63G datasheet |
| Description | CAP ALUM 22UF 20 50V SMD |
| Manufacturer | United Chemi-Con |
| Series | Alchip™- MVH |
| Part Status | Active |
| Capacitance | 22µF |
| Tolerance | ±20% |
| Voltage - Rated | 50V |
| ESR (Equivalent Series Resistance) | 1.6 Ohm @ 100kHz |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 77.19mA @ 120Hz |
| Ripple Current @ High Frequency | 83mA @ 100kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.248" (6.30mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
