Product Introduction
1969730-2
- Part Number
- 1969730-2
- Manufacturer/Brand
- TE Connectivity AMP Connectors
- Description
- CONN HEADER VERT 2POS 2.5MM
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Economy Power 2.5
- Quantity
- 14656pcs Stock Available.

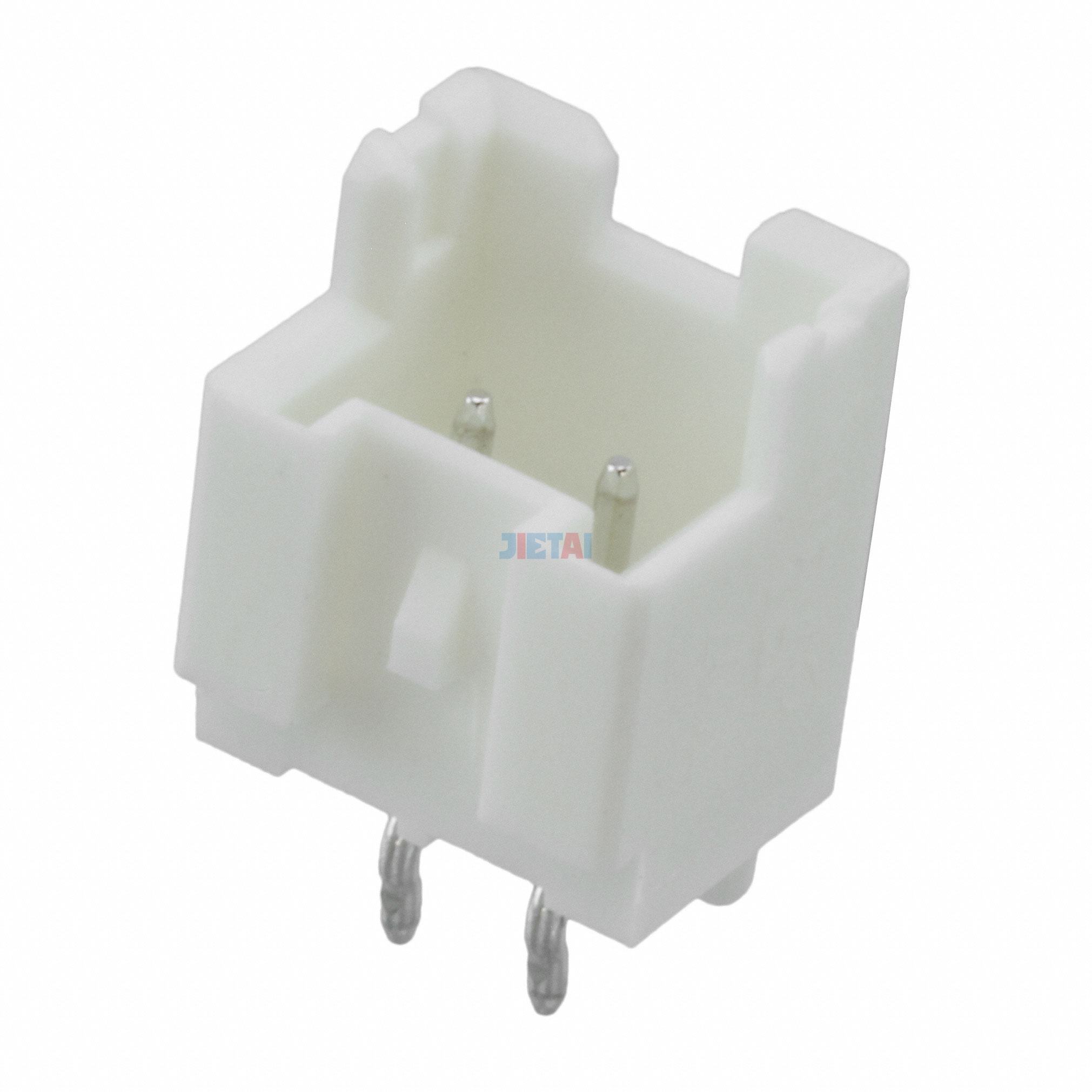

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | 1969730-2 |
| Datasheet | 1969730-2 datasheet |
| Description | CONN HEADER VERT 2POS 2.5MM |
| Manufacturer | TE Connectivity AMP Connectors |
| Series | Economy Power 2.5 |
| Part Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.098" (2.50mm) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Friction Lock |
| Contact Length - Mating | 0.141" (3.60mm) |
| Contact Length - Post | 0.134" (3.40mm) |
| Overall Contact Length | - |
| Insulation Height | 0.346" (8.80mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Thermoplastic |
| Features | Board Guide |
| Operating Temperature | -55°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating | 4.2A |
| Voltage Rating | 250VAC |
