Home / Products / Inductors, Coils, Chokes / Fixed Inductors / 744916020
Product Introduction
744916020
- Part Number
- 744916020
- Manufacturer/Brand
- Wurth Electronics Inc.
- Description
- FIXED IND 2NH 2.1A 38 MOHM SMD
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- WE-KI HC
- Quantity
- 12pcs Stock Available.

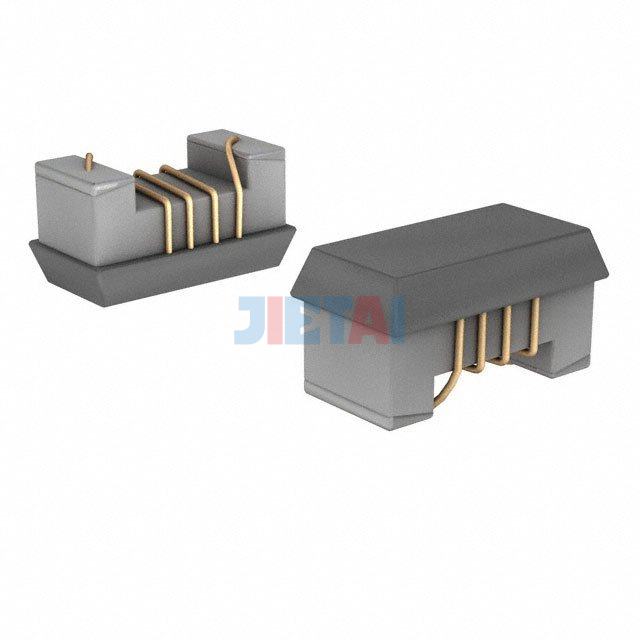

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | 744916020 |
| Description | FIXED IND 2NH 2.1A 38 MOHM SMD |
| Manufacturer | Wurth Electronics Inc. |
| Series | WE-KI HC |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ceramic |
| Inductance | 2nH |
| Tolerance | ±0.2nH |
| Current Rating | 2.1A |
| Current - Saturation | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 38 mOhm Max |
| Q @ Freq | 24 @ 250MHz |
| Frequency - Self Resonant | 15.2GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | SMD |
| Size / Dimension | 0.043" L x 0.024" W (1.10mm x 0.60mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
