Product Introduction
AWH50G-0202-T-R
- Part Number
- AWH50G-0202-T-R
- Manufacturer/Brand
- Assmann WSW Components
- Description
- CONN HEADER VERT 50POS 2.54MM
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 5544pcs Stock Available.

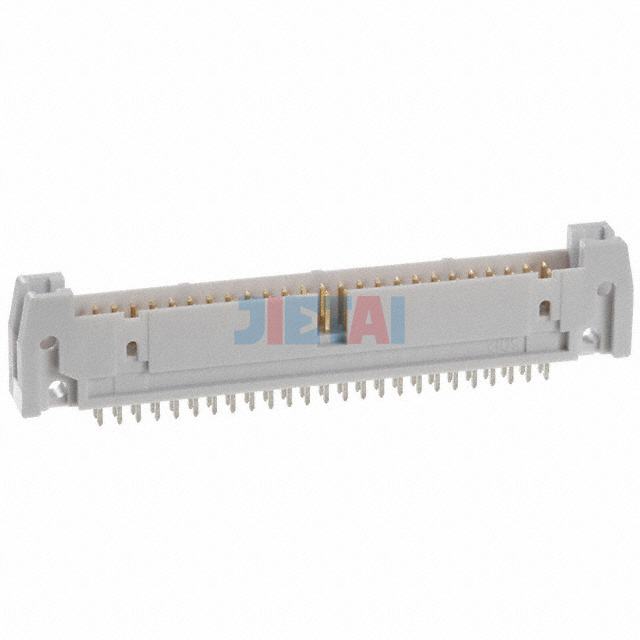

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | AWH50G-0202-T-R |
| Datasheet | AWH50G-0202-T-R datasheet |
| Description | CONN HEADER VERT 50POS 2.54MM |
| Manufacturer | Assmann WSW Components |
| Series | - |
| Part Status | Obsolete |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | - |
| Contact Length - Post | 0.130" (3.30mm) |
| Overall Contact Length | - |
| Insulation Height | 0.669" (17.00mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Keying Slot |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Gray |
| Current Rating | 3A |
| Voltage Rating | - |
