Product Introduction
RCL12259R10JNEG
- Part Number
- RCL12259R10JNEG
- Manufacturer/Brand
- Vishay Dale
- Description
- RES SMD 9.1 OHM 2W 2512 WIDE
- Category
- Chip Resistor - Surface Mount
- RoHs Status
- Lead free / RoHS Compliant
- Series
- RCL
- Quantity
- 2125pcs Stock Available.

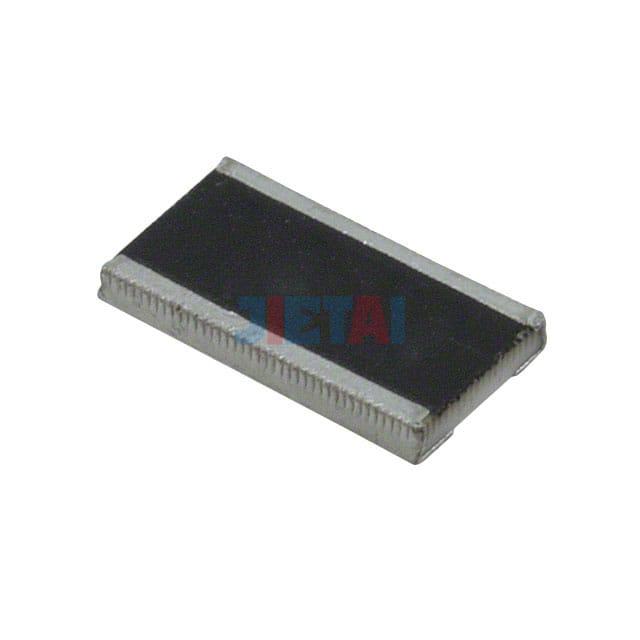

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | RCL12259R10JNEG |
| Datasheet | RCL12259R10JNEG datasheet |
| Description | RES SMD 9.1 OHM 2W 2512 WIDE |
| Manufacturer | Vishay Dale |
| Series | RCL |
| Part Status | Active |
| Resistance | 9.1 Ohms |
| Tolerance | ±5% |
| Power (Watts) | 2W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200 |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | Wide 2512 (6432 Metric), 1225 |
| Supplier Device Package | 1225 |
| Size / Dimension | 0.126" L x 0.248" W (3.20mm x 6.30mm) |
| Height - Seated (Max) | 0.032" (0.80mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
